Digital Smoothflow

Shower Waste Pump Systems

Description

Application : Provides electric shower drainage where gravity drainage is not possible.

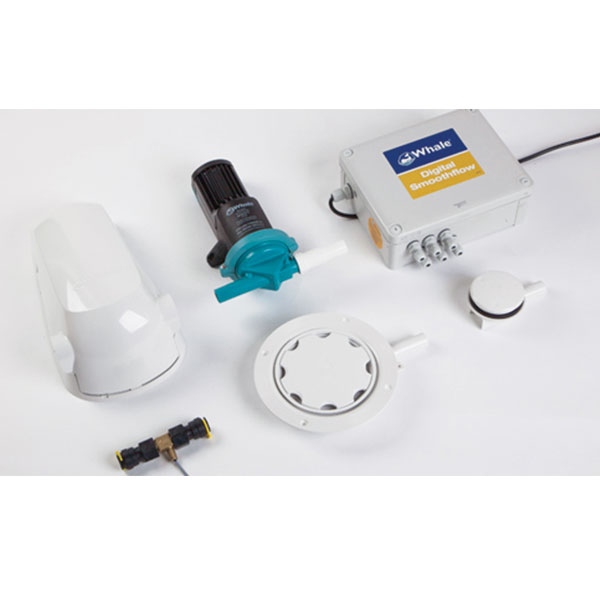

This kit has been designed for the pumping of shower waste water. When the shower is turned on, the flow sensor(s) measure the flow rate of the water into the shower. The pump speed is controlled directly from the control unit which uses the signals sent from the flow sensor to adjust the pump speed to match the flow from the shower. This minimises suction noise at the gulley.

A simple setup is required to match the pump performance to the characteristics of the installation.  When the shower is finished the pump will automatically switch on after 15 minutes to remove any water pooled in the showering area. The pump has the ability to run dry without causing damage to the pump.

The pump speed is commissioned to each installation, suitable for showers up to a flow rate of 12 lpm.

This unit is also suitable for mixer showers with the addition of a second flow sensor.

For sizing advice, please contact our office for assistance.

Specification

Suitable For

Electric Showers

Mixer Showers

Product Code

H4530KIT

H4531KIT

Max Drainage Capacity

8 lpm (15mm Pipe)

12 lpm (22mm Pipe)

12 lpm
