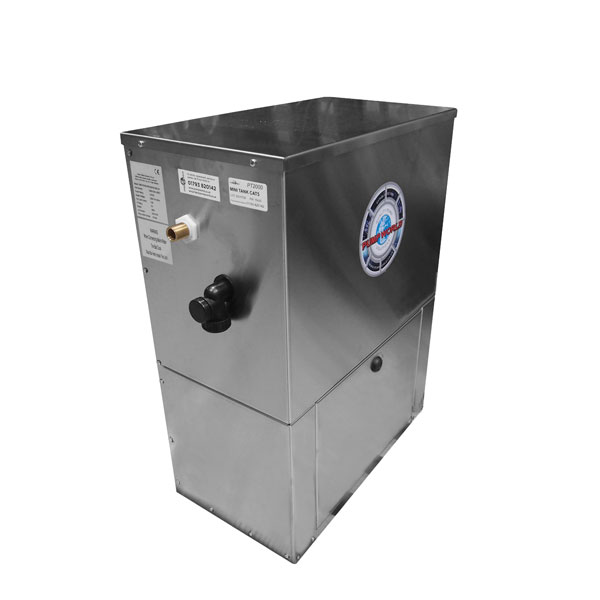

Mini Tank CAT5

Compact CAT5 Units, Suitable for Wall Mounting


Description



Compliant with stringent back flow protection regulations outlined in the Water Supply (Water Fittings) Regulations 1999, the unit ensures a high level of safety, making it suitable for applications in the presence of hazardous liquids. Suitable for washdown in bin stores, medical rinsing equipment, school laboratory water supplies, single hosepipe supplies.

The Mini Tank enclosure boasts a brushed stainless steel construction, providing robust protection against corrosion. Inside, the unit is equipped with an 18 litre plastic tank, eliminating the need for additional water storage. The controllers come equipped with a built-in low water cutout feature, safeguarding the pump from dry run scenarios. Additionally, the VF variant offers compatibility with physical low water protection devices such as float switches (supplied separately).

Both variants of the Mini Tank series come equipped with volt-free contacts. The Mini Tank features a volt-free contact for Pump run, while the VF variant offers an output for “Fault.” These outputs are compatible with local BMS systems, enabling remote monitoring.

The Mini VF Controller offers the flexibility to set specific cut-in and cut-out pressures through its user-friendly HMI and seven-segment display.

With two mounting eyes conveniently located on the back of the cabinet, the units can be effortlessly mounted onto internal walls.

If you know the model you require, please call for a quotation. To have a MINI TANK CAT5  model sized or to check suitability for your application, please call our technical team on 01793 820142.

Specification                                        Materials

Product Name

Mini Tank CAT5

 Cabinet

Stainless Steel

Product Code

PT2000PW

 Break Tank

Polyethylene

VF Product Code

PT2010PW

 Ball Valve

Brass

Max Head

40.0 m

 Pump Body

Ryton

Max Flow

32 lpm

 Pipework & Fittings

Copper / Brass / S-Steel

Motor Rating

0.37 kw, 240V

Tank Capacity

18 Litre

 Protection

IP54

Air Gap

CAT5 AB

 Noise Emissions

<70 dBA

Connection

15 mm

Dimensions

L x W x H mm

482 x 270 x 640
