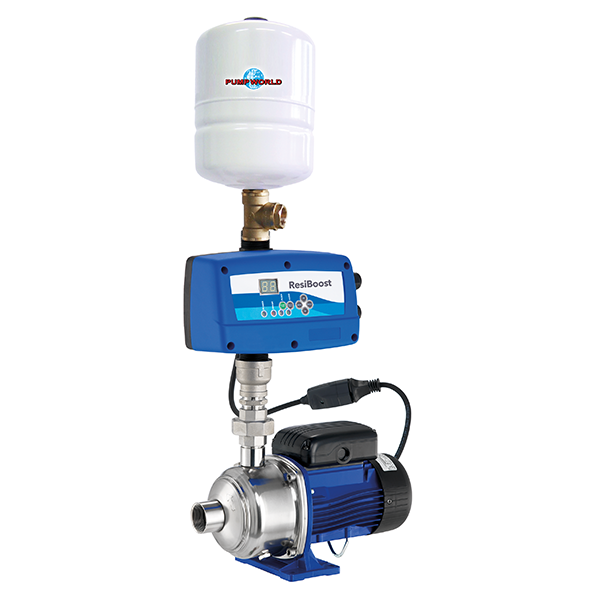

Smartboost RB

Energy Efficient Boosting

Description

Application : Ideal for domestic and light commercial boosting.

Highly efficient horizontal multistage pump range with best in class efficiency and IE3 motors fitted as standard. Robust stainless steel construction, high quality bearings and high efficiency hydraulics for

quiet operation and long service life.

The pre-mounted inverter control and panel with LCD display is programmed for constant set pressure regardless of demand. This variable speed control is precise and results in high energy saving, reduced running costs and quiet operation. The inverter has inbuilt protection against various system and electrical faults. Smooth operation and soft starting ensure quiet running and an extended pump life. Easy to set up and operate, built-in dry run, over current, voltage and short circuit protection, and a built-in pressure transducer with digital indicator. IP55 protection.

The pump set is completed with an 8 litre vessel kit and installation kit comprising mat, flexibles, nipple, strainer, lever ball valves and reducing bushes to suit 1.0” pipework.

For sizing advice, please contact our office for assistance.

Specification                                                                            Kit

Model

Smartboost 4E-RB

Smartboost 5E-RB

Smartboost 6E-RB

1x 8LV Vessel Kit

Code

P1345KIT

P1352KIT

P1355KIT

1x Rubber Mat

Max Pressure

4.5 Bar

5.8 Bar

5.9 Bar

1x Y Strainer

Max Flow

70 lpm

70 lpm

120 lpm

2x Lever Ball Valve

Motor Rating

Single Phase

Single Phase

Single Phase

2x S/S Flexible

Connection

1.0” / 1.25”

1.0” / 1.25”

1.25” / 1.25”

1x Brass Nipple

Dimensions

L x W x H (mm)

336 x 240 x 880

390 x 240 x 880

392 x 240 x 880

Reducing Bush(es)

Services

Pre-Commissioning

This service will have the pump pre-set to your required performance prior to despatch.
