Hot Water Waste Sets                      Above-Ground Waste Water Lifting Units

Description

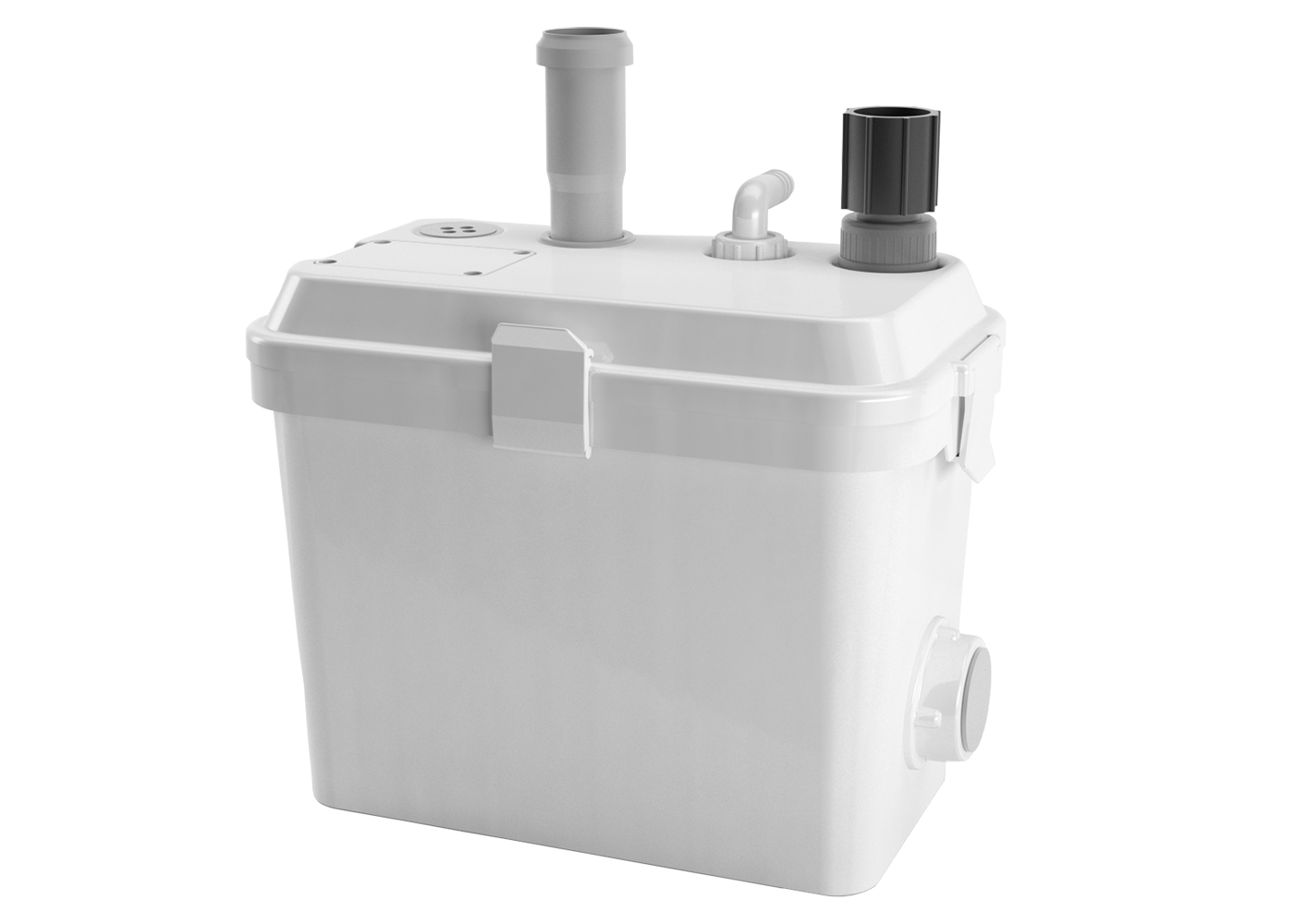

The Hot Water Waste Set and High Head Discharge are waste water lifting units, pre-assembled, ready for connection with 1.5 m power cable.

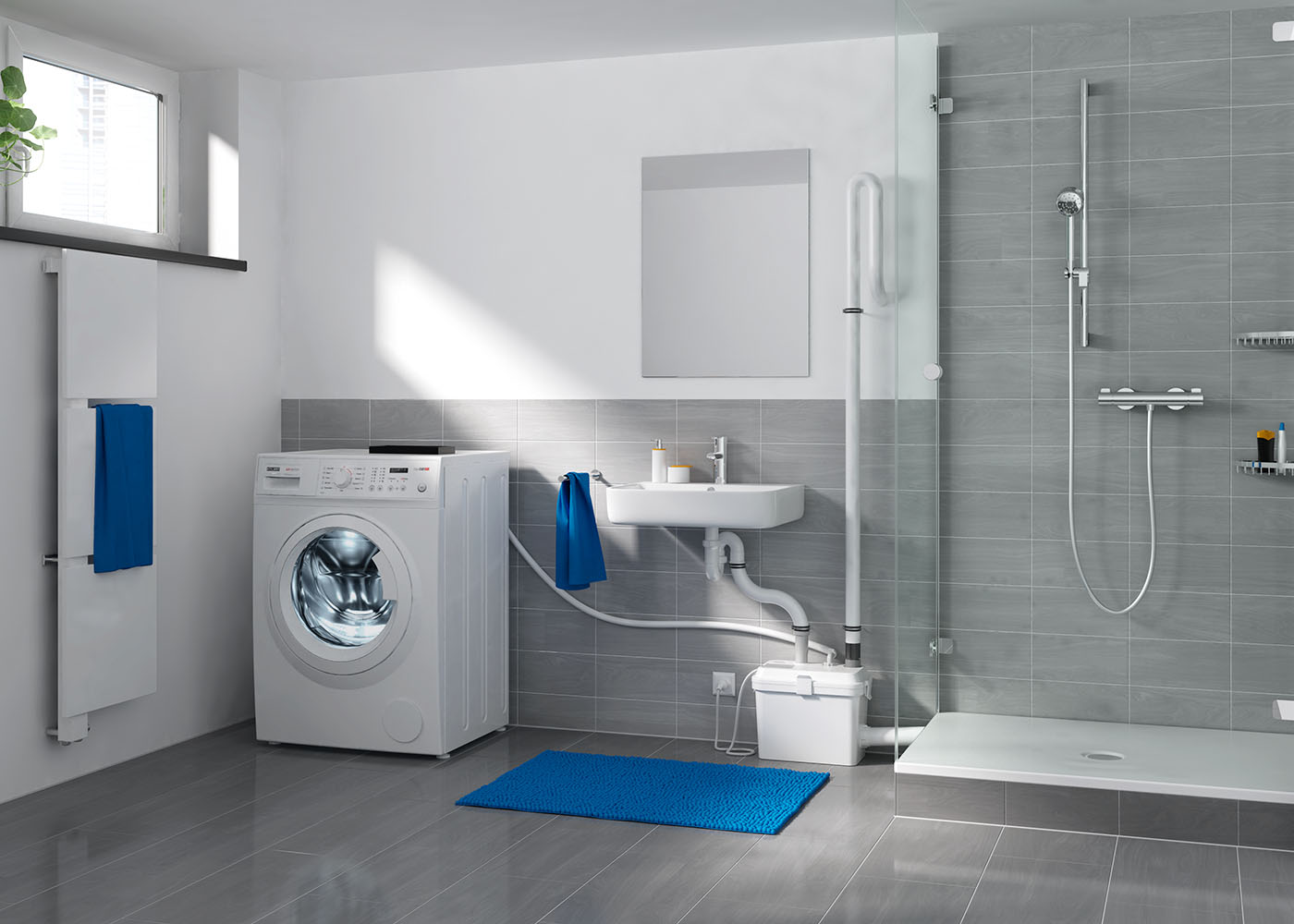

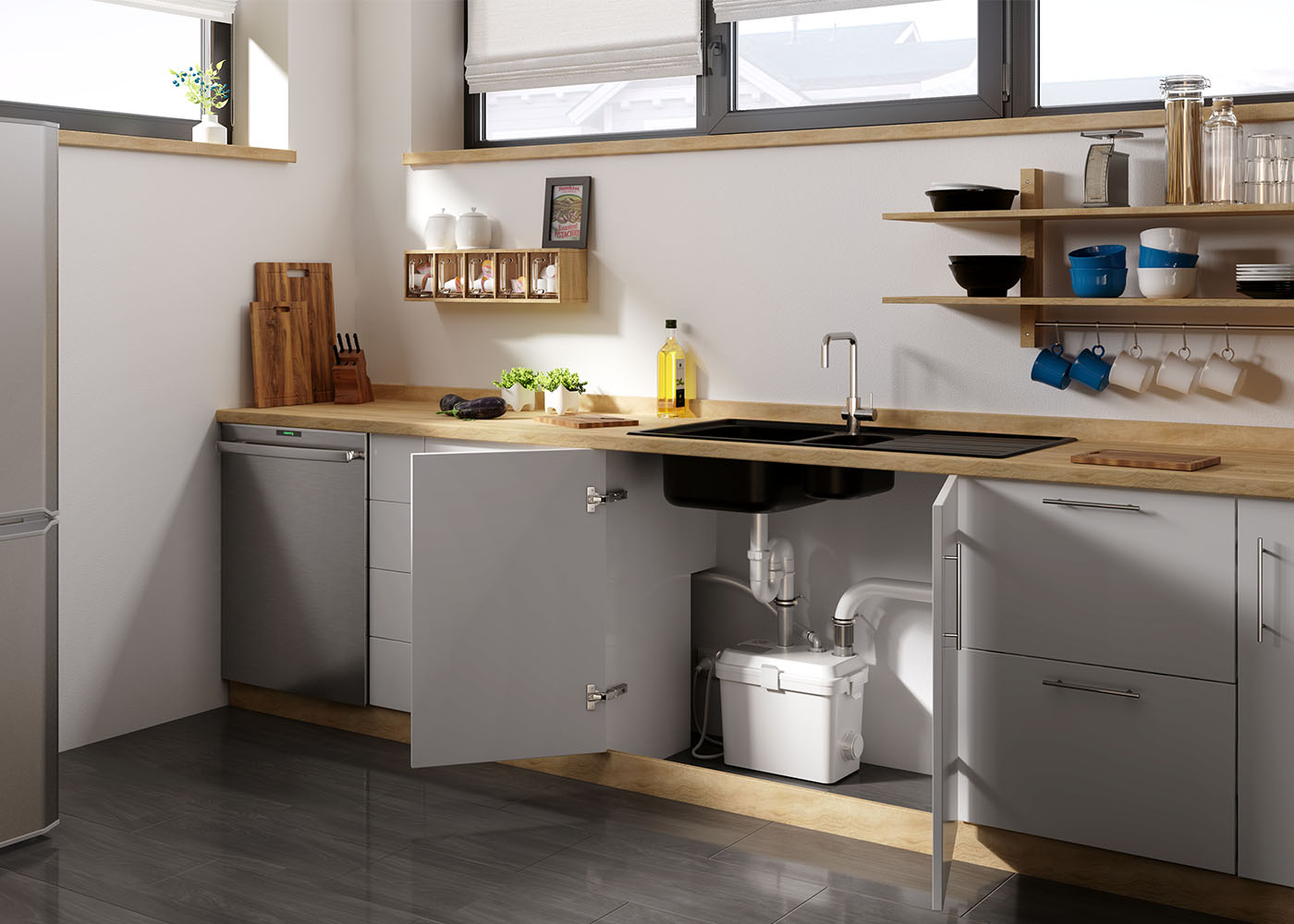

The waste water sets are suitable to handle waste water from hand basins, sinks, washing machines etc. in above-ground installations, in frost protected rooms below the backflow level. Suitable for domestic, industrial and agricultural purposes. Not suitable for sewage water.

The H1554S model is suitable for the pumping of slightly acidic condensate, aggressive or salty media (max. 15% salt content). Particularly suitable for use in coastal areas.

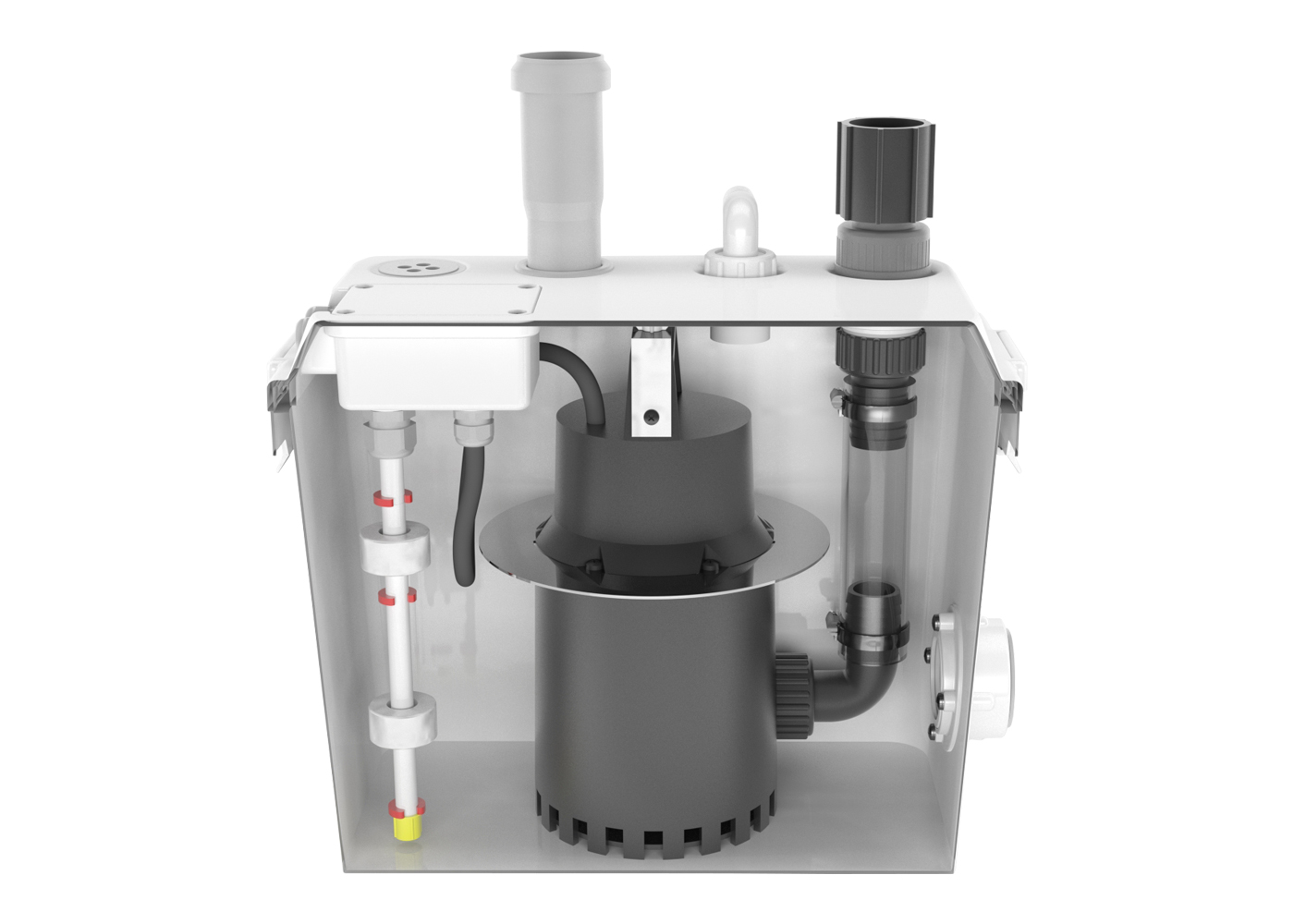

PP container with approx 10 litres capacity. Switching device integrated into the lid with audible high water alarm signal. Potential-free contact for external alarm or washing machine stop. Pump fixed on lid for easy cleaning and maintenance.

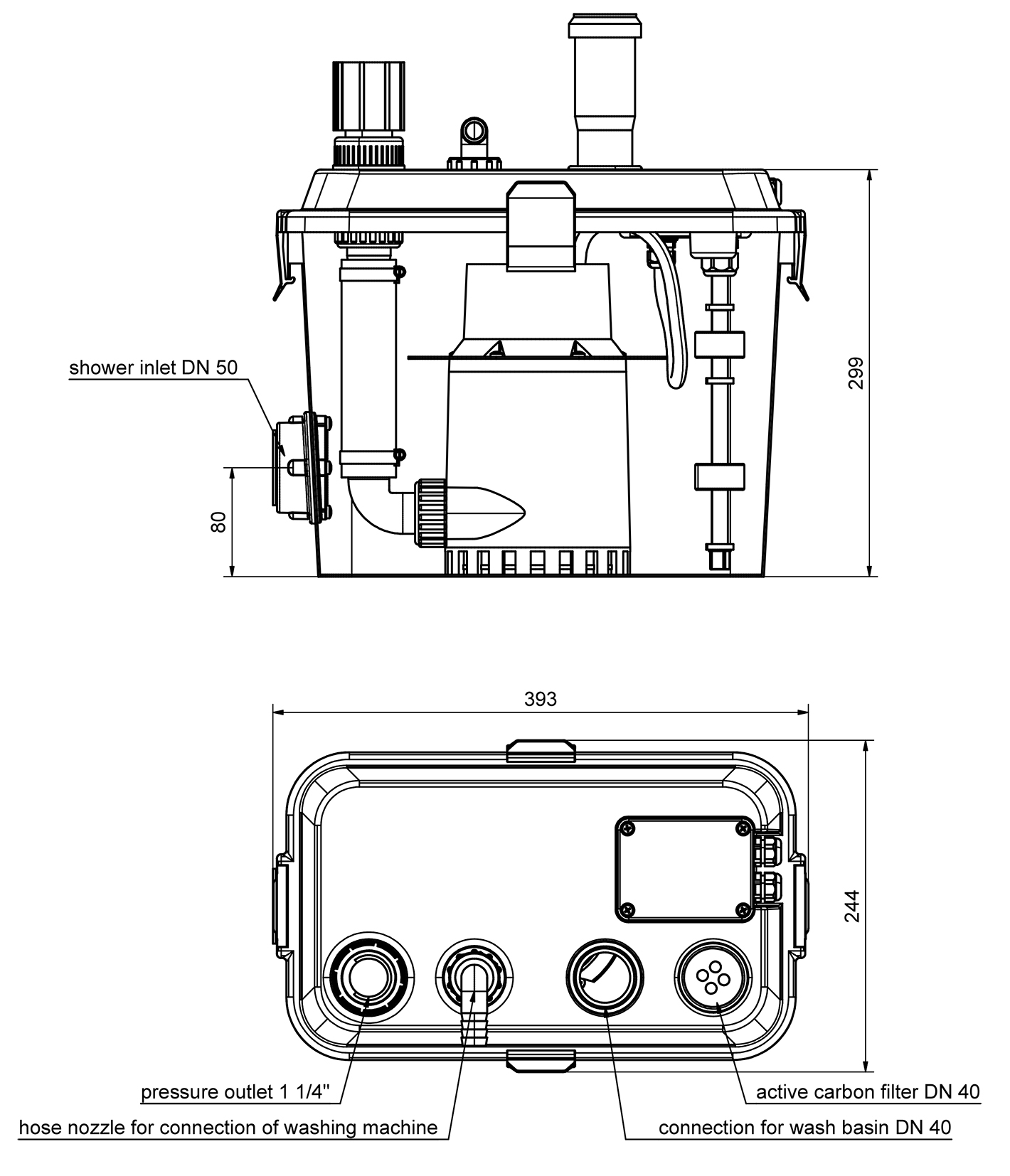

Prepared shower inlet DN50 usable on both sides (container bottom edge until the middle of the shower inlet only 80 mm). Pressure outlet 1.25" female thread with integrated non-return valve. Active carbon filter for container ventilation. Protection grade IP 57 - temporarily submersible. 230V power supply. The motor is equipped with thermal overload protection. Operation temperature 40ºC (short term 90ºC).

If you know the model you require, please call 01793 820142 for a quotation. To have a HOT WATER WASTE SET sized or to check suitability for your application, please call our technical team on

01793 820142.

Specification

Model

Hot Water Waste Set

High Head Discharge

Product Code

H1554 or H1554S

H1577

Max Head

6.0 m

11.0 m

Max Flow

8.0 m3/h

14.0 m3/h

Motor Rating

230V

230V

Free Passage

10 mm

10 mm

Dimensions

L x W x H (mm)

393 x 244 x 299

393 x 244 x 299
