Logicpress / Set / Plus

Electronic Pressure Switch Control

Description

Application: Pump management system.

The Logic range is a series of electronic pressure switches that will control and protect an electric pump. They start the pump immediately when a valve in the pipe system is opened and stop the pump immediately when the valve is closed. They maintain a constant system pressure, protect the pump from dry running and reduce the effects of water hammer. They are fitted with non-return valves and have a simple user interface for system status and reset.

Automatic Reset Function : Pump protection from dry running but with automatic reset, enabling the pump to operate normally again during a condition where the lack of water may have been only temporary. These devices are designed to make 10 attempts to start over a 24 hour period. On the 10th attempt, if the condition still exists, ie. it is not temporary, it switches off. A system inspection and manual reset is then required.

Daily Pump Test Function : If for any reason the pump remains idle for 24 consecutive hours, the devices are designed to start up the pump for about 5  seconds. This helps to avoid various problems associated with pumps inactive for long periods.

These units must be operated vertically. The column of water between the switch and the highest outlet must not exceed 15 metres (1.5 Bar) - the ‘restart pressure value setting’ - otherwise the system pressure may not fall to the pre-set ‘cut-in’ pressure and the system will not restart. This value is pre-set at the factory, so no additional programming is required, or possible, during installation. The Logicpress Set has three pre-programmed restart pressure settings of 1.5, 2.0 and 2.5 Bar which can be programmed by the user to serve a range of duties. Minimum flow required inwards is 1 lpm.

For sizing advice, please contact our office for assistance.

Product Name

Logicpress

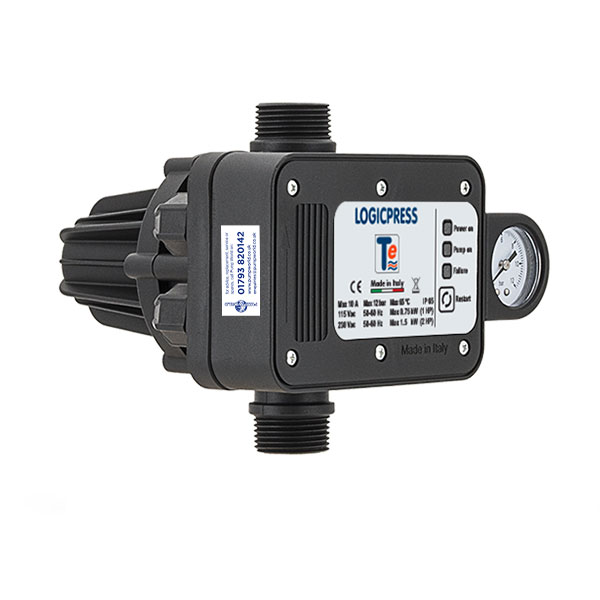

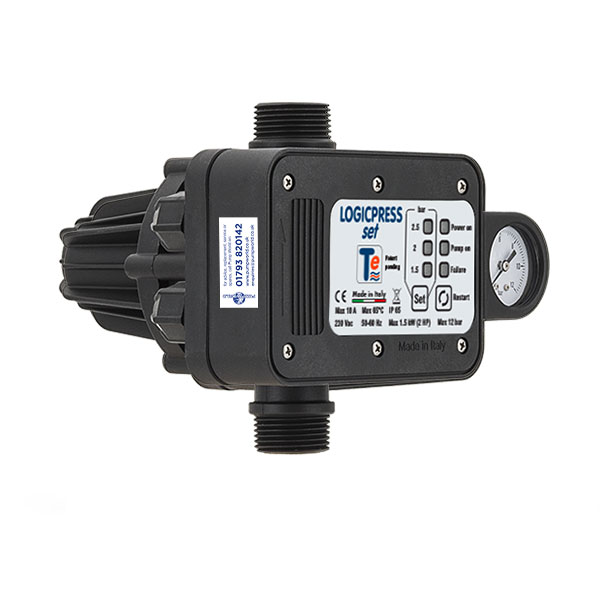

Logicpress Set

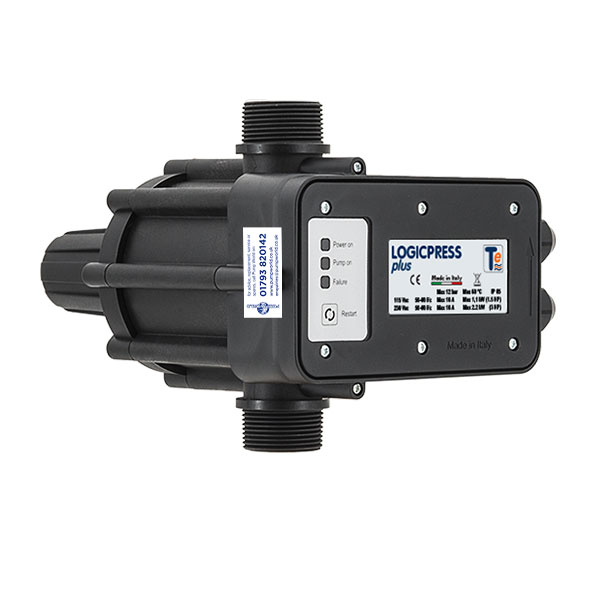

Logicpress Plus

Product Code

N6600

N6700

N6750

Max Pressure

12.0 Bar

12.0 Bar

12.0 Bar

Pump Start Pressure

1.5 Bar

1.5 - 2.0 - 2.5 Bar

1.5 Bar

Max Flow

166 lpm

166 lpm

200 lpm

Max Temperature

65’C

65’C

60’C

Max Power

0.75 kw (110V), 1.5 kw (230V)

1.5 kw (230V)

1.1 kw (110V), 2.2 kw (230V)

Connection

1.0” BSPM

1.0” BSPM

1.25” BSPM

Dimensions L x W x H

190 x 190 x 110 mm

190 x 190 x 110 mm

211 x 251 x 175 mm
