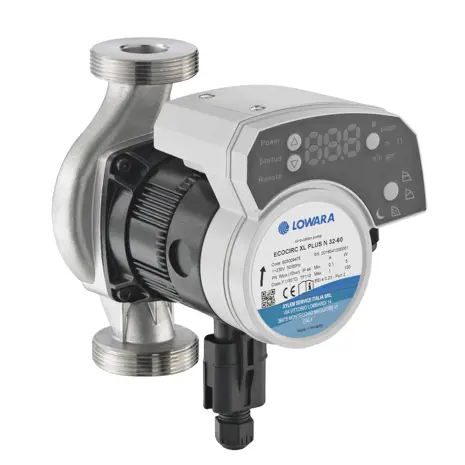

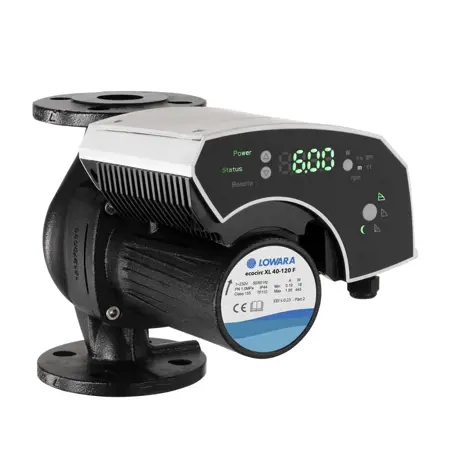

Eco-PLUS XL

High Efficiency Wet Rotor Circulators

Description

Application : Suitable for circulating water in hot water heating systems, air conditioning and cooling systems, domestic hot water systems, solar systems and geothermal systems.

Ideal for commercial systems, these single head variable speed wet rotor circulators provide state-of-the-art technology in hydraulics, motors and intelligent controls. It is a purposefully engineered, easy-to-install range designed with simplicity and efficiency in mind.

High efficiency, low power consumption compliant to the ErP directive with different operation modes to adapt to requirements.

• Automatic proportional pressure control (Δpv)
• Constant pressure control (Δpc)
• Differential temperature control (ΔpT)
• Manual set constant speed
• Night setback mode

Easy to install and startup with no advanced programming necessary. Clear display and easy setting with touch buttons. Visual display of operating status and warning and alarm signals. Errors and working log history. Dry run protection and air purge. Communicate with Modbus RTU and BACnet systems. Can be controlled from a laptop, tablet or smartphone via WiFi (optional module).

For sizing advice, please contact our office for assistance.

Specification

Model

Eco-PLUS XL 25-60/180

Eco-PLUS XL 25-80/180

Eco-PLUS XL 25-100/180

Code

CPEA4235

CPEA4245

CPEA4255

Max Head

6.0 m

8.0 m

10.0 m

Max Flow

100 lpm

158 lpm

170 lpm

Motor Rating

Single Phase 1x 230V

Single Phase 1x 230V

Single Phase 1x 230V

Communication

Modbus

Modbus & BACnet

Modbus & BACnet

Connection

1.5” (PN6/10)

1.5” (PN6/10)

1.5” (PN6/10)

Length

180 mm

180 mm

180 mm
