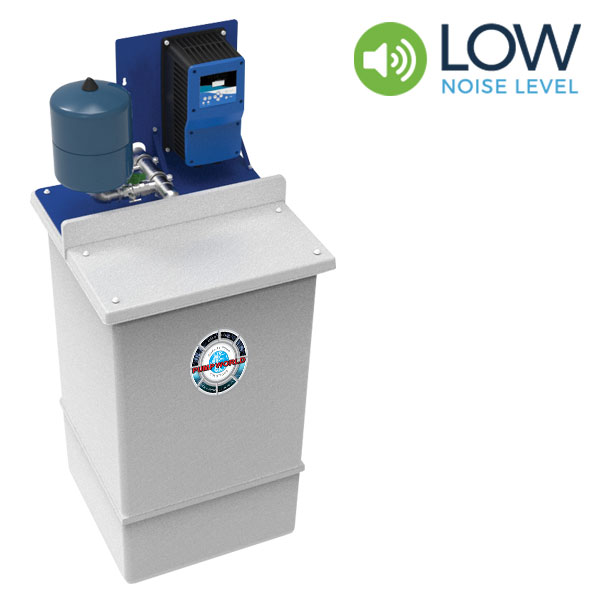

Smart Tank 20 30 40

Compact Variable Speed Break Tank Booster Set

Description

Application : Overcome low water pressures around the home.

Suitable for any cold water boosting applications such as domestic cold water boosting, washdown booster set, sports halls and leisure centres, and schools. Suited to commercial building services and residential applications.

A quiet running, compact close-coupled multistage submersible pump is fitted, designed to deliver reliability, flexibility and high performance. The electric motor is cooled by pumped liquid, fitted with an internal capacitor and built-in thermal protection. The high efficiency hydraulics and abrasion resistant impellers will ensure stable performance.

The pump is installed within a high quality GRP break tank with CAT5 AB backflow protection. This is the highest level of protection, with a weir overflow on the side of the tank. This ensures there is always an air gap between the water level and tank inlet.

Mounted on top of the tank is an 8 litre vessel and variable speed drive that can cut energy consumption up to 70% compared to a traditional fixed speed unit. It varies the speed of the pump motor depending on demand, therefore ideal for applications with variable usage.

WRAS Approved components for potable water applications.

For sizing advice, please contact our office for assistance.

Specification

Product Name

Smart Tank 20

Smart Tank 30

Smart Tank 40

Product Code

 PT8000MP

PT8200MP

PT8700MP

Max Head

40.0 m

68.0 m

58.0 m

Max Flow

67 lpm

67 lpm

117 lpm

Motor Rating

0.55 kw, 240V

0.90 kw, 240V

1.1 kw, 240V

Tank Capacity

250 Litre

250 Litre

250 Litre

Air Gap

CAT5 AB

CAT5 AB

CAT5 AB

Connection

32 mm Discharge

32 mm Discharge

32 mm Discharge

Dimensions

L x W x H mm

702 x 630 x 1412

702 x 630 x 1412

702 x 630 x 1412

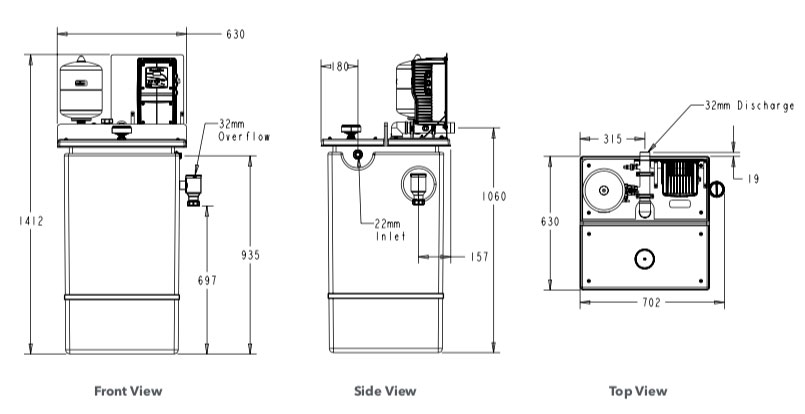

Schematic

Please note:

Discharge positioned on the back of the tank.

Inlet and Overflow (with strainer basket), located on the right hand side.

CAT5 compliant, weir overflow on left hand side.
