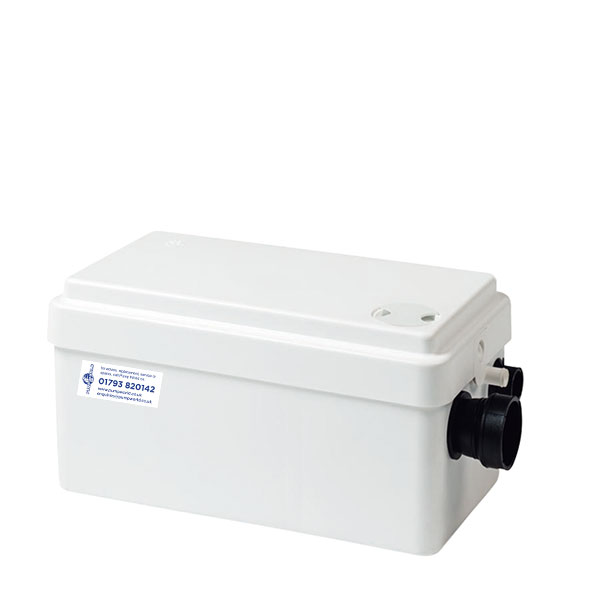

Shower Waste Set D2

Automatic Lifting Station

Description

The D2 is a small, compact automatic lifting station suitable for pumping of wastewater off places in private dwellings where greywater (w/o faeces) cannot be led directly to the sewer by means of a natural downward slope.

Typically used for cabinet showers, washbasins or bidets in basements below sewer level, in connection with the renovation or modernisation of existing buildings, where the location may be remote from the main soil pipe so that a natural slope cannot be established. The pumping of liquids containing other material may cause faults and limit the scope of the guarantee.

Extremely low switching levels for lowest construction heights, advantageously in case of connection of a shower receptor. The D2 is suitable for confined space conditions in built-in cabinets or also below shower receptors or pedestals.

The compact lifting station is equipped with

  • Cable without plug
  • Discharge hose connector with several adaptors for pipes with Ø22-36mm
  • Integrated non return valve
  • Dry and high performance motor unit incl. thermal protection, pressure switch and controller
  • Flexible connectors for inlet (adjustable in height) of pipes Ø36 or 40
  • Manual anti clogging function and separate drain connection for service
  • Venting valve with overflow protection
  • Uplift fixation clips

Design according to EN12050-2 and production inspection by external institute with unique features focused on quick installation, long lasting operation and easy clean service.

Specification

Product Code

H6600

Inlet Connection

36/40/50, 1.25/1.5 inch

Max Head

5.5 m

Outlet Connection

22/32, 0.75/1 inch

Rated Head

3.26 m

Rated Voltage

1 x 220-240 V

Max Flow

1.98 lps

Power Cable

1.2 m

Rated Flow

1.06 lps

Tank Volume

2 Litre (nominal)

Type of Impeller

Vortex

Enclosure Class

IP44

Max Particle

10 mm

Insulation Class

F

Liquid Temperature

0 - 50’C (0 - 40’C Ambient)

Weight

6.0 kg

Start Level

Stop Level

58 mm above Floor Level

35 mm above Floor Level

Dimensions

L x W x H (mm)

376 x 165 x 217
