Smart-box & Dock

Electronic Booster System

Description

Application : Cold water boosting for domestic properties.

The Smart-box is a self-priming multistage pump; with electronic inverter management, flow and pressure sensors, high-resolution LCD display and integrated expansion tank. Complete with dry run and frost protection, plus wireless connectivity and energy monitoring facility. Using a water cooled motor, the operating noise is greatly reduced, making the Smart-box the quietest booster pump available in its class.

With its compact design, the Smart-box is easy to install, maintain and operate. The addition of the fast connection Docking Station with anti-vibration feet, provides easy access to the connection points and with four possible hydraulic configurations, a rapid and flexible installation process. You can also create multi pump systems by combining up to four pumps together.

Suitable for drinking water, domestic systems, pressurisation and gardening irrigation.

Combining the Smart-box with a potable water storage tank provides a complete solution for boosting pressure in domestic applications.

For sizing advice, please contact our office for assistance.

Pump Specification                              Tank Options

Maximum Pressure

6.2 Bar

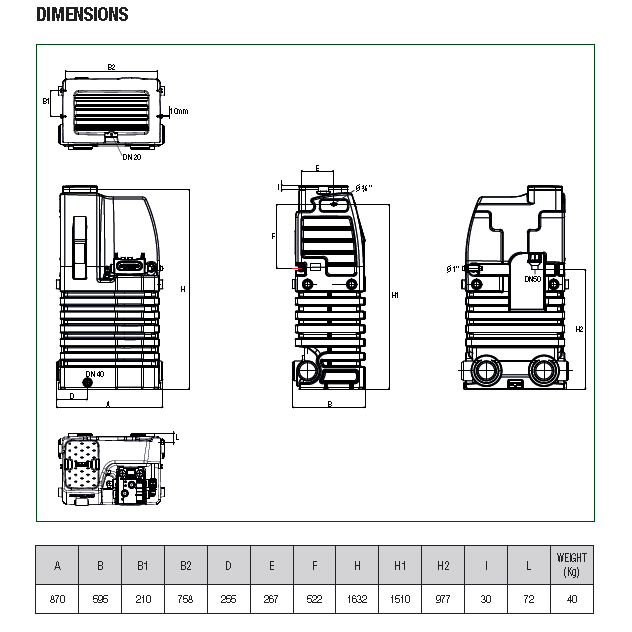

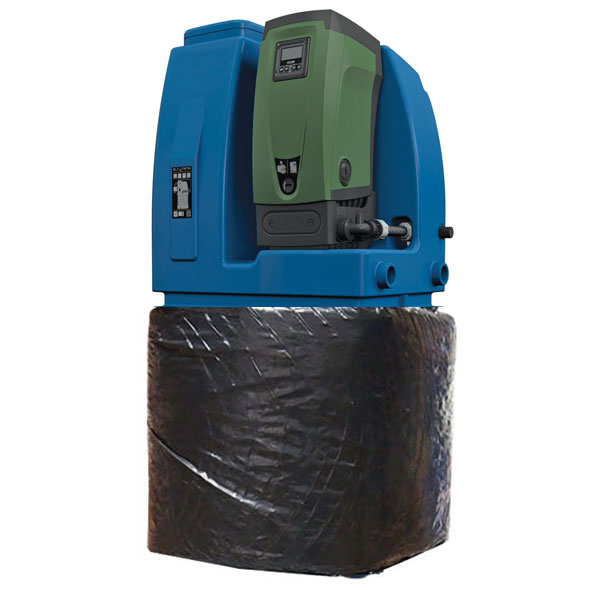

P1600KIT  480 Litre Blue Integrated

L870 x W595 x H1632 mm.

Motor Rating

1.55 kw, 10 Amps, 230/1/50

AC-ET1400A  Economy Insulation Jacket

Recommended to maintain stable temperature.

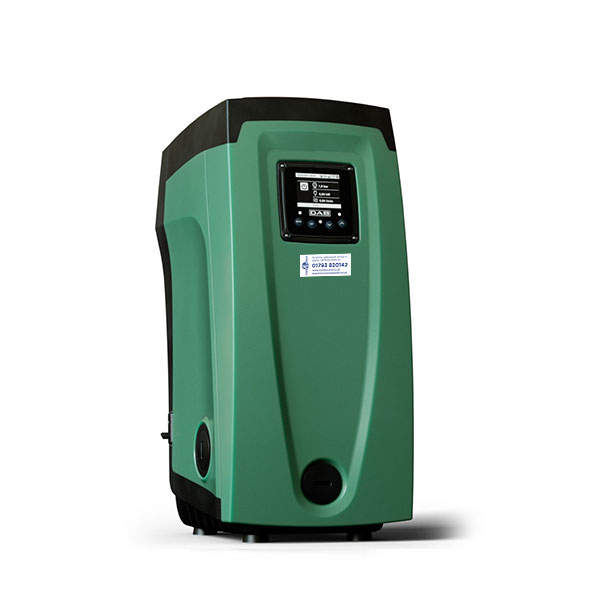

Smart-box Only

P1300

Connection

1.0”

P1650KIT  480 Litre Blue Integrated CAT5

Compact water storage with CAT5 air gap.

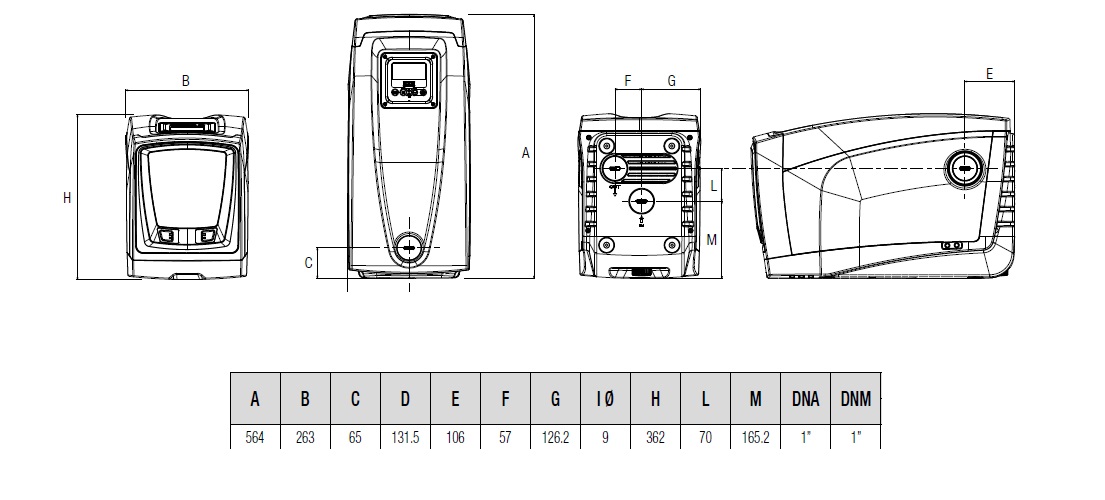

Dimensions

L x W x H (mm)

263 x 352 x 565

AC-ET1400A  Economy Insulation Jacket

Recommended to maintain stable temperature.

… with Docking Station

P1300KIT

Connection

1.25”

P1910KIT  500 Litre Slimline Insulated

L870 x W650 x H1200 mm

Dimensions

L x W x H (mm)

293 x 352 x 679

P1920KIT  500 Litre Slimline Insulated CAT5

L870 x W650 x H1700 mm
