Steam Oven Waste Sets

Low Level Waste Water Pump for Combi Ovens

Description

Application: Designed for pumping waste water from island based combination ovens at only 40mm or 70mm from floor level.

Where floor gulley drainage is absent or where ovens are sited away from the drainage points of the kitchen such as islands.

The Steam Oven Waste Sets have been designed, developed and made in the UK. The new improved range has a capacity to pump away up to 160 lpm which not only means it can now be connected to 2 ovens but also gives it the versatility to be used in various other circumstances where drain water is required to be removed and no immediate drainage is available.

Operational ability to pump away to a 9.0 metre head at up to 160 litres per minute and to withstand water temperatures up to 96 degrees centigrade.

These units are waste water pumps specifically designed for combination oven units, it is not a food disposal unit or macerator.

For sizing advice, please contact our office for assistance.

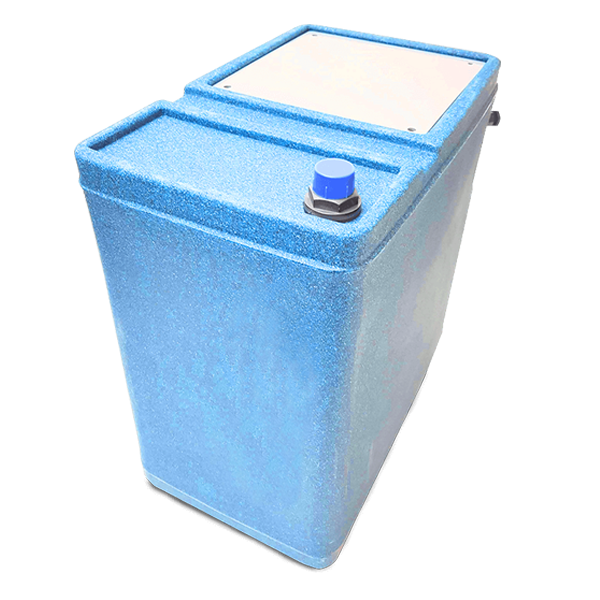

H1310

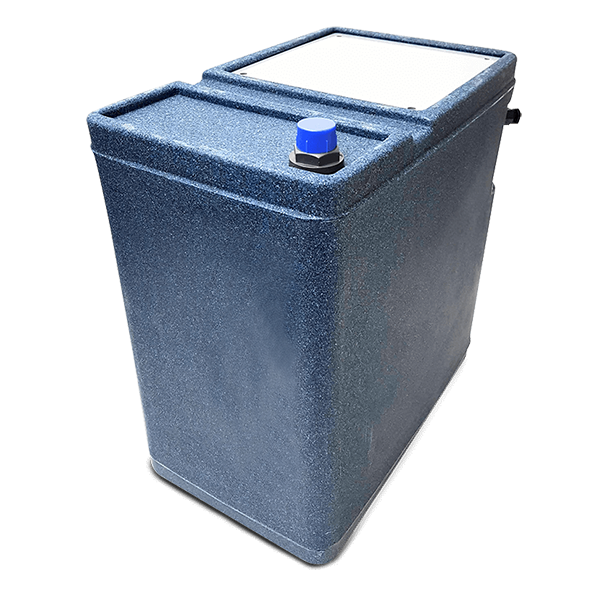

H1320

Specification

Product Code

H1310

H1320

The H1310  is designed to be used on ovens where the waste outlet from the oven is as low 40mm from the floor and

requires the pump to activate at that level in order to prevent backflow into the oven.

It is suitable to be used on 2x10 Grid Combination Ovens or 1x20 Grid Combination Oven.

The H1320 allows for a waste outlet up to 70mm with the pump activating at this higher level. It is suitable for up to 2x10 Grid Combination Ovens.

Maximum Head

9.0 m

Maximum Flow

80 lpm Input (160 lpm Output)

Temperature

96°C Maximum (85°C Operating)

Motor Rating

0.4 kw, Single Phase

Pump Speed

2800 rpm

Inlet

1.5” Compression

Outlet

¾” BSP Male

Waste Outlet Position From Floor

40 mm

70 mm

Dimensions

D x W x H (mm)

450 x 250 x 470
