High Flow Water Softeners

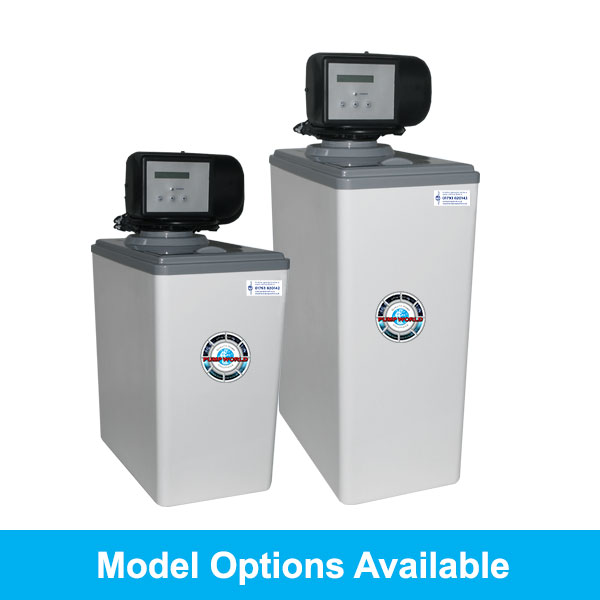

Available in Medium or Large

Description

High Flow Softeners have metered valves with large bore inlet and outlet and a good size internal cylinder to allow an extremely high flow of water through the softener whilst ensuring adequate contact time of water and softener resin for effective softening. This caters for where an unusually high flow of water is needed at any one time, particularly where pressurised water systems, with no cold water storage, are present and a number of baths, showers or appliances could be used at any one time. Use of a conventional system could cause an unacceptable slow flow or water starvation.

This high-flow water softener range with 1.0″ inlet and outlet to deliver up to 5,100 litres per hour, and generous treatment vessel in high gloss housing, to ensure proper softening of the high water volume without restriction.

Connected to the incoming mains, water passes into the large internal cylinder where the hard water salts are collected by high quality resin beads. When full, the resin beads need to be regenerated by washing with a brine solution (using tablet salt), which is then flushed away ready to resume softening work.

This unit features a computerised valve to regenerate automatically when capacity is reached, which can reduce salt consumption, especially useful in larger properties where water usage is variable.

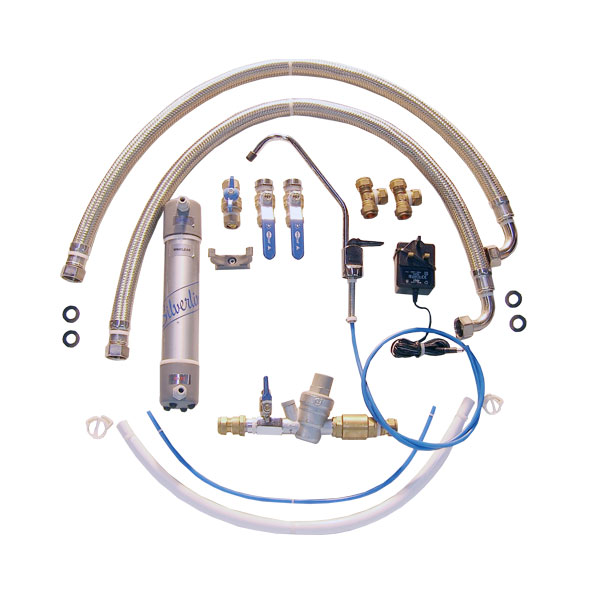

Includes a full flow fitting kit with large bore hoses provided for ease of installation, and hard/soft blending control so softness can be adjusted. A drinking filter kit (with limescale inhibitor) is also included for the hard water supply.

If you know the model you require, please call 01793 820142 for a quotation. To have a HIGH FLOW SOFTENER model sized or to check suitability for your application, please call our technical team on 01793 820142.

Specification

Model

Medium

Large

Code

RT-SL3100

RT-SL3200

Treat Up To

5100 litres per hour

5100 litres per hour

Salt Use / Regeneration

1.35 kg

2.0 kg

Inlet / Outlet

1.0”

1.0”

Dimensions

W x D x H (mm)

255 x 455 x 590

255 x 455 x 750
