Smartcirc (N) BUPA |
|
Domestic Circulators with Stainless Steel Housing |
|
Description

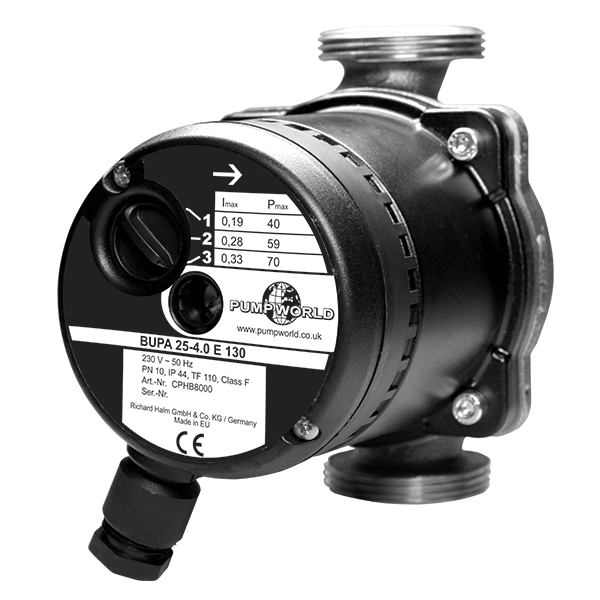

Wet rotor circulators designed for use in drinking water systems with constant or weakly variable flow rates. They feature a corrosion-resistant pump housing in stainless steel and are thus suitable for use in drinking water circulation systems. Only for drinking water up to a temperature of 65 °C and a max. degree of hardness of 14 °dH (temporary hardness)
The respective speed is set via a rotary switch integrated in the space saving axially integrated terminal box. 3-step switch with manual start-up feature. The sound pressure level is < 45 dB (A). |


|
Pump housing Stainless steel 1.4308 Impeller PSU - GF 20 Shaft Ceramic Bearing Ceramic Bearing plate Stainless steel 1.4301 Can Stainless steel 1.4301 |
|
|
|

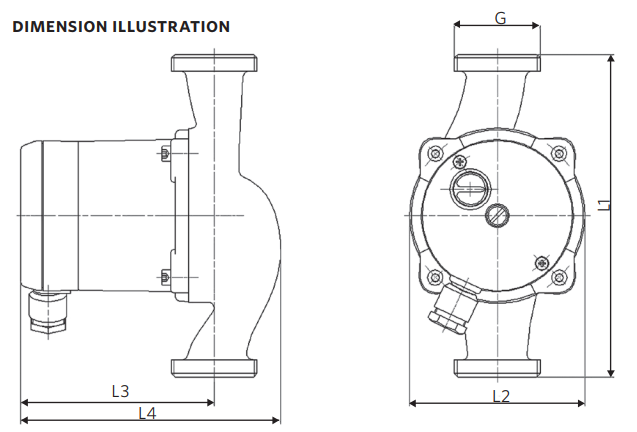

Specification Model | BUPA 25-4/130 | BUPA 20-4/150 | BUPA 25-6/130 | Product Code | CPHS8000 | CPHS8100 | CPHS8500 | Max Head | 4.0 m | 4.0 m | 6.0 m | Max Flow | 2.75 m3/h | 2.75 m3/h | 3.5 m3/h | Motor Rating | 33 - 44 W (230V 50/60 Hz) | 33 - 44 W (230V 50/60 Hz) | 43 - 80 W (230V 50/60 Hz) | Protection Class | IP 44 | IP 44 | IP 44 | Insulation Class | H | H | H | Nominal Pressure | PN10 | PN10 | PN10 | Threaded Connection | 1.5” | 1.25” | 1.5” | Connection Pipe | 1.0” | ¾” | 1.0” | L1 | 130 mm | 150 mm | 130 mm | L2 | 98 mm | 98 mm | 98 mm | L3 | 108 mm | 108 mm | 108 mm | L4 | 145 mm | 145 mm | 145 mm |
|
Temperature range Ambient temperature: 0 °C to +40 °C Temperature class: TF 110 Media temperature: +2 °C to +110 °C
Ambient temperature To avoid condensation forming in the terminal box and stator, the media temperature must always be the same or higher than the ambient temperature.
Motor protection External motor protection is not required. |
| Ambient temp. | Media temp. min. | Media temp. max. |
| 0 | 2 | 110 |
| 10 | 10 | 110 |
| 20 | 20 | 110 |
| 30 | 30 | 110 |
| 35 | 35 | 110 |
| 40 | 40 | 110 |
Minimum inflow pressure Please determine the minimum inflow pressure for corresponding temperature from the following table.
Media temperature | < 85 °C | 90 °C | 110 °C | Minimum inflow pressure | 0.05 bar | 0.3 bar | 1.10 bar |
|
We reserve the right to make changes without prior notice.
