Smart CAT5 Fixed

Compact CAT5 Boosting

Description

Application : Compact packaged break tank and booster set for applications where CAT5 fluid water protection is required.

This unit provides backflow protection for fluid category 5 risks. It includes a type AB airgap and has a water volume of 10 litres.

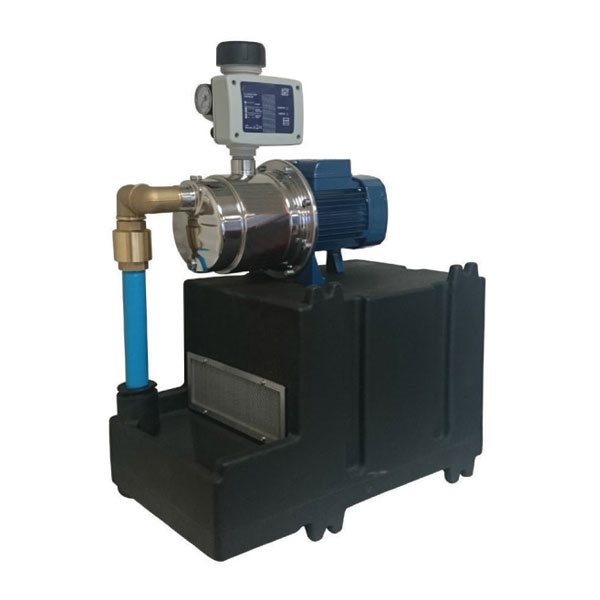

The tank is mounted with a self priming jet pump to ensure smooth operation. The electronic controller automatically starts and stops the pump when a drop in pressure is sensed i.e. a tap is opened and closed.

Key components include the non-corrosive holding tank, pre-fitted WRAS approved fill valve and integral screened overflow weir.

The unit is pre-assembled with minimal installation required. It has dry run protection with auto restart (time delay).

For sizing advice, please contact our office for assistance.

Specification

Product Name

Smart CAT5 Fixed

Product Code

PTP-PE900

Max Head

30.0 m

Max Flow

60 lpm (at 1.0 Bar)

Motor Rating

0.37 kw, 240V

Tank Capacity

10 Litre

Air Gap

CAT5 AB

Connection

¾” Inlet, 1.0” Outlet, 40mm Overflow

Dimensions

L x W x H mm

500 x 300 x 670
