Grey Water Waste Set

Automatic Waste Water Lifting Station

Description

Application : Suitable for the collection and lifting of domestic waste water from the bath, sink, shower, and washing machine in basements, or below the sewer network in general.

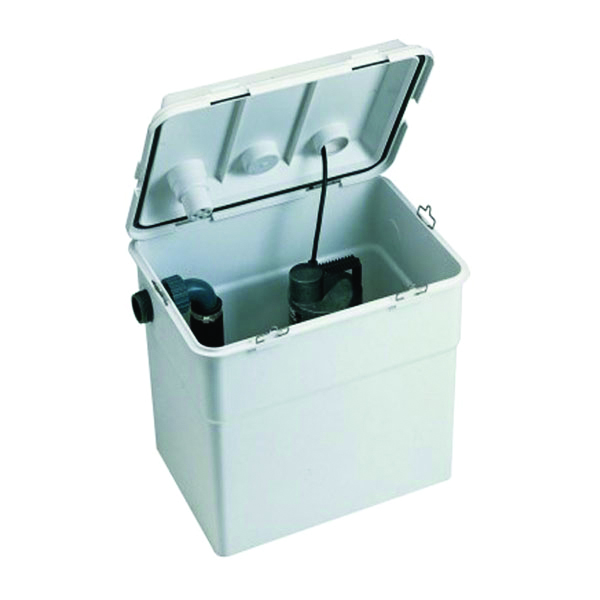

This automatic lifting station comprises a submersible pump with a 5 metre power input cable and plug fitted on a technopolymer plate, mounted within a 30 litre technopolymer tank. Check valve mounted on the delivery. Supplied with connection kit and shower float kit.

This unit is suitable for pumping waste water without solids and/or fibrous material at a liquid temperature range for +50’C up to +90’C for a maximum time of 3 minutes. IP68 protection. Motor isolation rating F.

For sizing advice, please contact our office for assistance.

Specification

Product Code

H1552

Max Head

7.0 m

Max Flow

200 lpm

Motor Rating

0.22 kw, 230V

Liquid Temperature

+50’C

+90’C (for 3 minutes)

Tank Capacity

30 Litre

Free Passage

0 mm

Discharge

G 1.25”

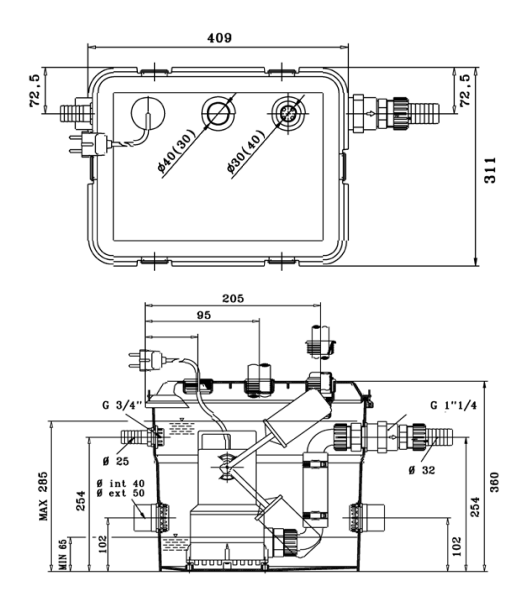

Dimensions

L x W x H (mm)

410 x 311 x 360
