Washdown CAT5 Sets

Internal & External Model Options

Description

Application : Designed to prevent backflow contamination of the mains water supply, while maintaining flow and pressure.

Suitable for bin store washdown and limited booster applications. The integrated break tank has a capacity of 18 litres (4 gallon), and is complete with a CAT5 air gap to prevent backflow contamination.

Easy access and maintenance with one outlet connection and a 5 metre hose limitation.

Two model options are available - one for internal use and one for external use.

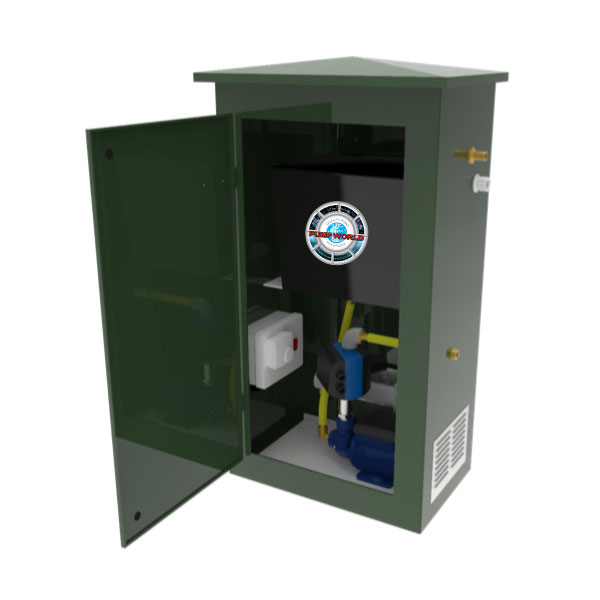

External Washdown

The unit comprises a single peripheral pump and water storage tank housed in a compact GRP cabinet with built-in heater for cold weather protection.

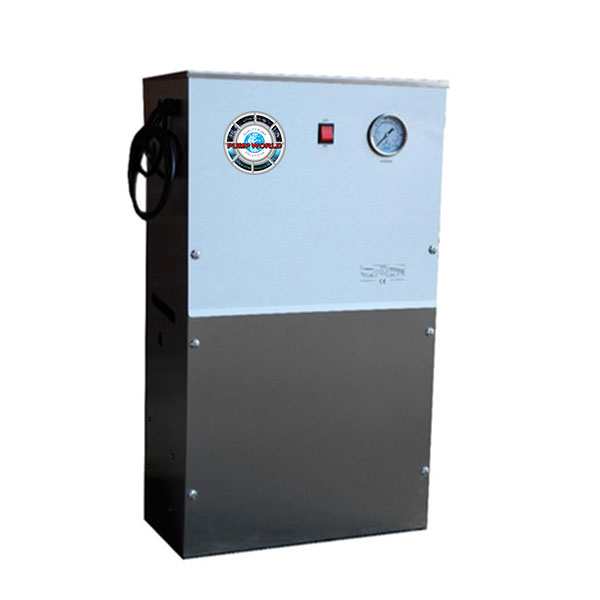

Internal Washdown

The unit comprises a single diaphragm pump and water storage tank housed in a compact, lightweight stainless steel cabinet for easy wall or floor mounting.

Specification

Product Name

External Washdown

Internal Washdown

Product Code

PT3000EXT

PT3000INT

Max Head

35.0 m

35.0 m

Max Flow

50 lpm

50 lpm

Motor Rating

0.37 kw, Single Phase

0.37 kw, Single Phase

Tank Capacity

18 Litre

18 Litre

Air Gap

CAT5 AB

CAT5 AB

Connection

½” Inlet, 15mm Comp Outlet

½” Inlet, 15mm Comp Outlet

Dimensions

W x D x H mm

610 x 390 x 1070

420 x 370 x 750
