UV Disinfection

Domestic & Commercial Applications

Description

Domestic

Commercial

Application : Ensuring the safety of your private water supply.

If your household water is from a ‘private’ water supply and you want to be confident of its safety or you are aware of a problem with bacteria in your water an Ultraviolet Sterilisation system is the perfect solution.

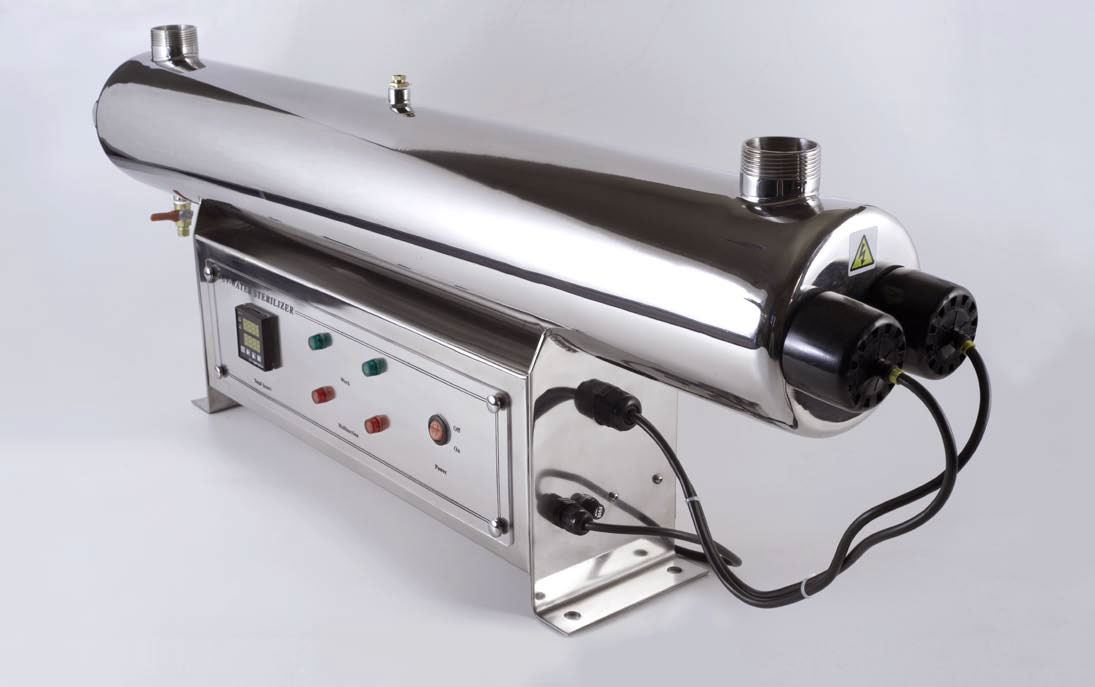

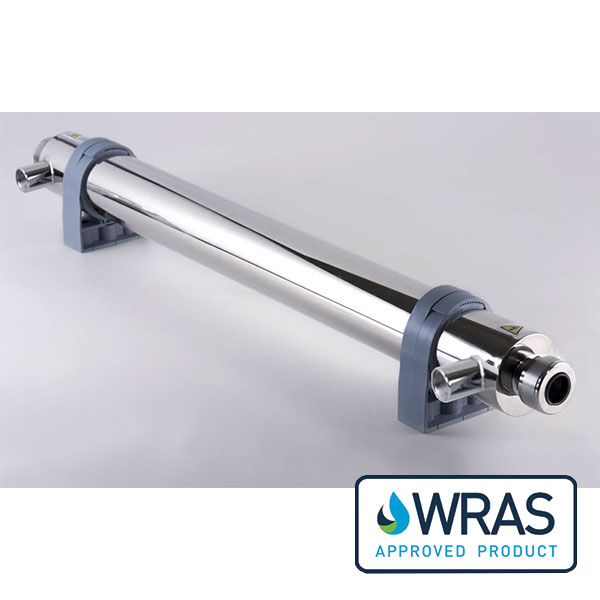

The range is made of high quality stainless steel (casing 316) and each model comprises a stainless steel chamber containing a germicidal lamp and quartz sleeve plus a separate electrical box which allows flexibility for fitting. The commercial range is floor standing with visual alarm, audio alarm, hour counter and air bleed screw incorporated.

When selecting an ultraviolet system, care must be taken to choose a model that is powerful enough to treat the flow required. If the flow is faster than specified the water passes through the chamber too fast for the rays to effectively kill all the bacteria. Where levels of sediment are high or water is cloudy a pre-filter should be fitted as shadowing from the particles could stop the UV rays reaching the organisms.

For sizing advice, please contact our office for assistance.

UV Domestic Specification

Model

UV 55 Domestic

UV 55 Domestic

UV 75 Domestic

Code

AC-SL1155A

AC-SL1156RKIT

AC-SL1175RKIT

Supplied With

Buzzer Alarm

1x Lamp 55W

1x Quartz Sleeve

R. Alarm Beacon

1x Lamp 55W

1x Quartz Sleeve

R. Alarm Beacon

1x Lamp 75W

1x Quartz Sleeve

Max Operating Pressure

100 psi

100 psi

100 psi

Maximum Flow

36 lpm

36 lpm

52 lpm

Unit Wattage

1x 55W, 220/240V

1x 55W, 220/240V

1x 75W, 220/240V

Port

¾”

1”

1.0”

Weight

8.0 kg

8.0 kg

8.0 kg

Dimensions

L x W x H (mm)

920 x 90 x 130

920 x 90 x 130

1200 x 90 x 130

UV Commercial Specification

Model

UV 110 Commercial

UV 165 Commercial

UV 220 Commercial

Code

AC-SL1110A

AC-SL1165A

AC-SL1220A

Supplied With

2x Lamps 55W

2x Quartz Sleeve

3x Lamps 55W

3x Quartz Sleeve

4x Lamps 55W

4x Quartz Sleeve

Max Operating Pressure

100 psi

100 psi

100 psi

Maximum Flow

72 lpm

108 lpm

144 lpm

Unit Wattage

1x 110W, 220/240V

1x 165W, 220/240V

1x 220W, 220/240V

Port

1.5”

1.5”

2.0”

Weight

18.0 kg

20.0 kg

24.0 kg

Dimensions

L x W x H (mm)

1000 x 150 x 360

1000 x 150 x 360

1000 x 190 x 410

Model

UV 330 Commercial

UV 440 Commercial

UV 550 Commercial

Code

AC-SL1330A

AC-SL1440A

AC-SL1550A

Supplied With

6x Lamps 55W

6x Quartz Sleeve

8x Lamps 55W

8x Quartz Sleeve

10x Lamps 55W

10x Quartz Sleeve

Max Operating Pressure

100 psi

100 psi

100 psi

Maximum Flow

216 lpm

288 lpm

360 lpm

Unit Wattage

1x 330W, 220/240V

1x 440W, 220/240V

1x 550W, 220/240V

Port

2.5”

2.5” / 3.0” Flange

3.0” Flange

Weight

35.0 kg

40.0 kg

45.0 kg

Dimensions

L x W x H (mm)

1000 x 230 x 450

1000 x 270 x 540

1000 x 300 x 560
