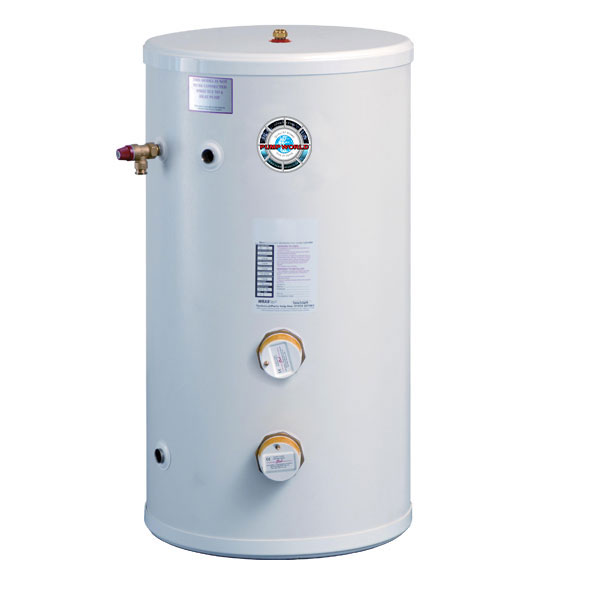

Description

Application : Supplies hot water in smaller properties where electricity is the only available heat source.

The cylinders are supplied with two factory-fitted 3kW immersion heaters which provide the option of heating water on different schedules, tariffs and configurations.

Manufactured in duplex stainless steel for superior corrosion resistance, with 316L grade stainless steel fittings and coils.

Fully insulated to minimise any heat loss.

Full unvented kit supplied including remote expansion vessel.

Factory fitted temperature and pressure relief valve, plus a 6.0 Bar pressure regulating valve.

Available in a vertical configuration.

For sizing advice, please contact our office for assistance.

Specification

Capacity

200 Litre

250 Litre

300 Litre

Product Code

FCTD1020F1

FCTD1035F1

FCTD1045F1

Max Pressure

6.0 Bar

6.0 Bar

6.0 Bar

Heat Up Time

108 mins

144 mins

202 mins

Recovery Time

63 mins

75 mins

136 mins

Immersion

3.0 kw x2

3.0 kw x2

3.0 kw x2

Connection

22 mm

28 mm

28 mm

Dimensions

D x H mm

580 x 1120

580 x 1490

580 x 1780

Recommended Accessories

CPHS8000   Smartcirc N 25-4/130

CPHS8500   Smartcirc N 25-6/130

The Smartcirc stainless steel circulators with 1.5” port to provide a secondary hot water circuit.
