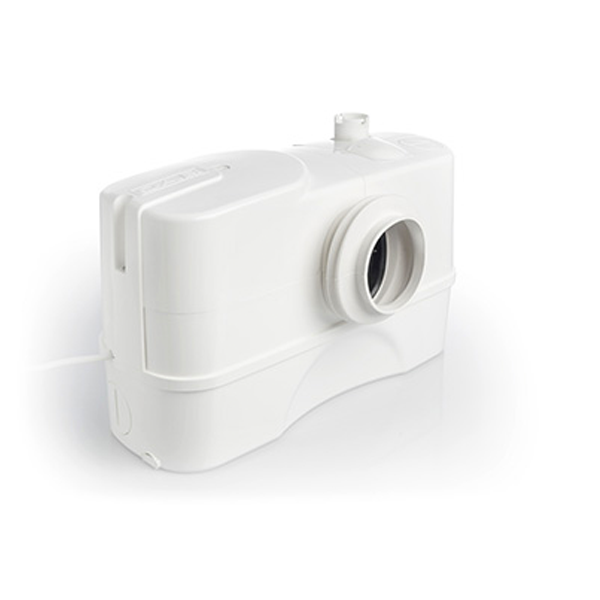

G-Type

Automatic Collector & Lifting Units

Description

Automatic collector and lifting units, indispensable in cases where sewage water from toilet, showers, wash basins or bidets cannot be expelled by gravity. The units will collect and pump waste water through a small sized pipe to the closest public sewer system.

The G-Type 110 range allows for a single WC connection plus 1 additional inlet, ie. a sink.

The G-Type 130 allows for the connection of three additional utilities such as sink, shower or bidet.

The models can also be characterised by their connection position for the drainage of sewage water from the WC either in the front of the unit or with a lateral (side) connection. The lateral (side) connection units have been specially designed for use with wall-hung sanitary or when there is not enough space behind the toilet. Enhance your installation with the quieter running models.

The pump inside is powerful and reliable, the grinder is made of nickel-plated stainless steel. Motor protection degree IP44. These components make it durable and low maintenance. The installation kit is complete with connections that can be adapted to different pipe diameters with quick coupling and integrated non-return valves. "Clean" maintenance, it is possible to unhook the motor block from the unit by emptying the water using a special nozzle. Acoustic alarm available as an optional extra.

If you know the model you require, please call 01793 820142 for a quotation. To have a G-TYPE model sized or to check suitability for your application, please call our technical team on 01793 820142.

Specification

Range

G-Type 110

G-Type 130

Suitable For

Single WC +

1 (up) additional inlet

Single WC +

2 (side) and 1 (up) additional inlets

WC Connection

Front

Lateral (Side)

Front

Lateral (Side)

Dimensions

L x W x H (mm)

456 x 178 x 351

456 x 178 x 346

456 x 178 x 351

456 x 178 x 346

Product Code

H1460

H1462 (quieter running)

H1464

H1470

H1472 (quieter running)

H1474

Maximum Head

8.0 m (6.0 m according to EN12050-3)

Maximum Flow

90 lpm

Temperature

0 to 50°C (waste water as regulated by EN12050-3)

P2, Voltage 50 Hz

0.32 kW, 1 x 230V

Capacity

Approved for flushing from 6 to 9 litres according to EN12050-3

DNM (mm)

22 / 25/ 28 / 32 / 36 / 40
