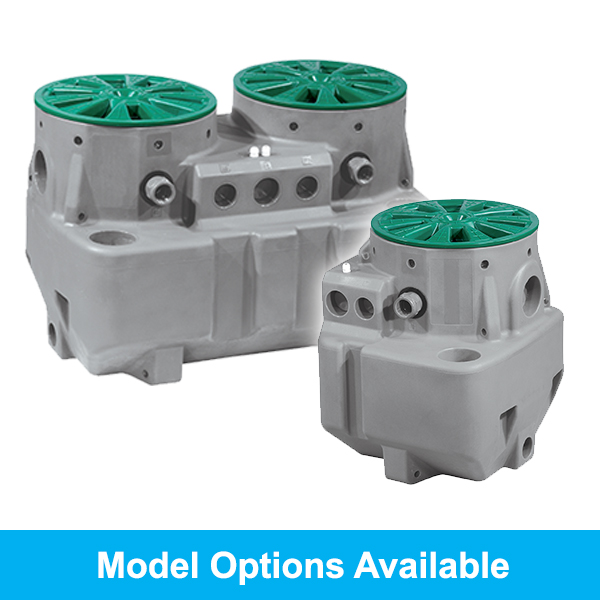

Microbox 6

Prefabricated Lifting Station for Waste Water

Description

Prefabricated lifting stations for waste water in compliance with EN 12050-1&2, suitable for delivering grey and waste water to main sewer lines located at a higher level, or where gravity drainage is not possible.

The stations are equipped with:

• Polyethylene tank (air-tight, anti-pollution) pursuant to European standard EN 12050, with a threaded pedestrian cover (100kg max) and integrated handles.
• Cable glands for power  supply cables (and floats).
• Rp 1.5 or Rp 2 delivery pipes with fast connection and ring nut for easy disassembly of the pump, or with sliding device. 2x Rp 1.5 or Rp 2 delivery pipes for twin system.
• 4 fast connections :  2x DN110 for inlet, 1x DN50 for ventilation and 1x DN65 for cable connection. Twin system has 8 fast connections : 4x DN110, 2x DN50 and 2x DN65.
• 1x DN50 fast connection for a manual pump.
• 3 rubber seals : 1x DN110, 1x DN50 and 1x DN65.
• Single or twin stainless steel vortex impeller pumps, suitable for clean water, effluent, sewage containing suspended solids and fibres.
• Float switches, control panel and alarm.

The units can be installed on the floor or buried in a suitable structure following the instructions in the manual supplied. Installation is simplified with quick pipe and cable connection, pre-installed delivery pump and unions. Tried and tested pump technology with easy maintenance and repair.

230/1/50 as standard. Three phase (400/3/50) supply available on request.

If you know the model you require, please call 01793 820142 for a quotation. To have a MICROBOX 6 model sized or to check suitability for your application, please call our technical team on 01793 820142.

Specification                                                                    Extras

Product Name

Microbox 6 VX7

Microbox 6 VX10

Ball Check Valves

Max Head

9.0 m

7.8 m

Alarm Kit

Max Flow

250 lpm (per pump)

400 lpm (per pump)

Manual Pump & Seal

Free Passage

35 mm

50 mm

Seals Kit

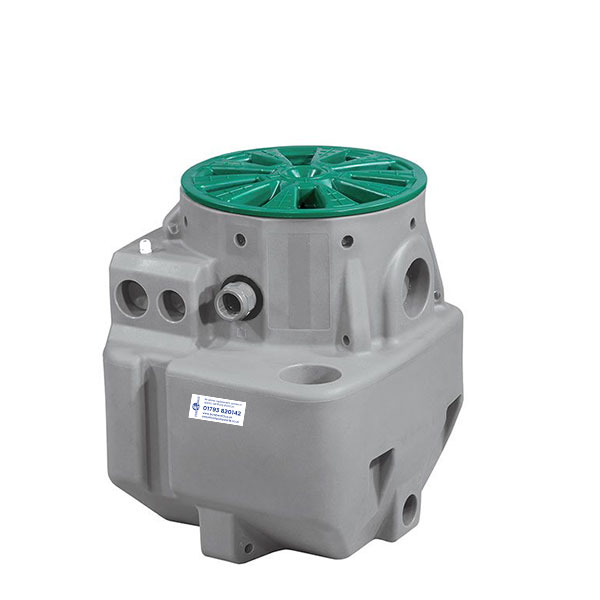

Single Product Code

H3255

H3260

Tank Capacity

270 Litre

Dimensions

L740 x W700 x H840 mm

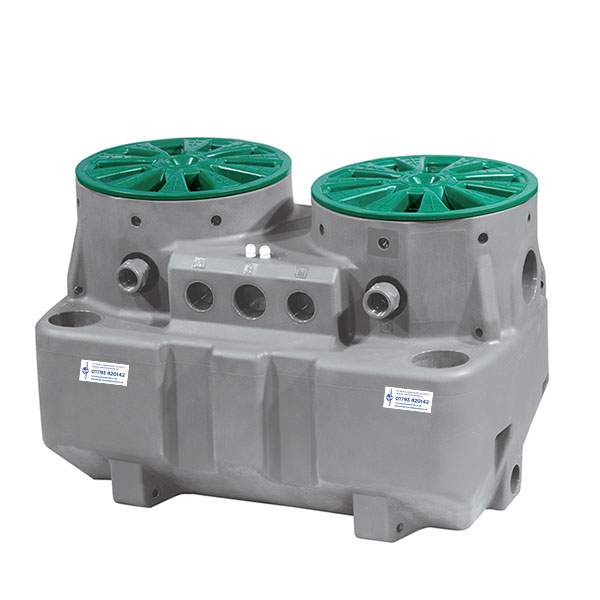

Twin Product Code

H3268

H3270

Tank Capacity

550 Litre

Dimensions

L1270 x W745 x H840 mm
