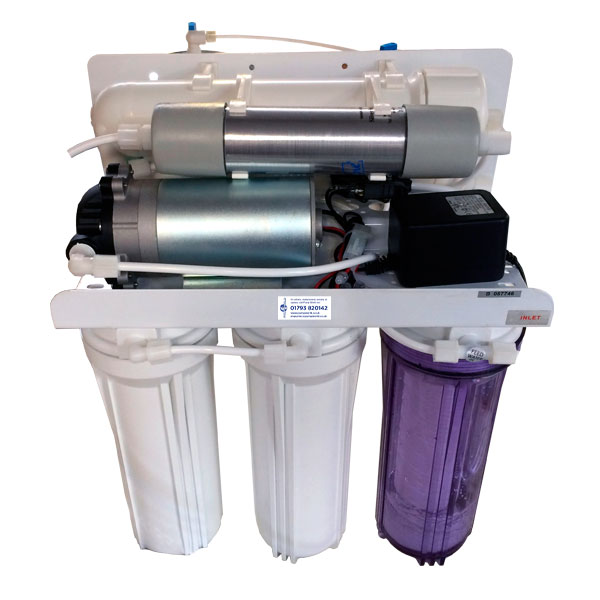

Reverse Osmosis System

Sediment, Particle and Chlorine Filtration

Description

v

Application : Sediment, particle and chlorine prefiltration, membrane separation and polishing filter with pump.

Water passes from the cold water supply into the pre filters where dirt particles and chlorine are treated. It then passes into the membrane where clean water can pass through and contaminants are rejected and sent to the drain. The treated water passes into the post filter for final polishing then into the collection tank for later usage

The system is connected to the mains water pipe under the kitchen sink using a self piercing valve. To ensure water is not wasted on washing up and cleaning a separate drinking water tap is provided. Both the pipe connector and tap have a tube attached which push into the system inlet and outlet respectively.

The system comprises:

• Sediment cartridges for particle filtration
• Carbon cartridge to protect membrane from chlorine
• Membrane housing with TFC membrane giving high rejection levels of unwanted water elements
• Post filter for final polishing of the water
• 3 gallon stainless steel collection tank
• Electronic solenoid valve to prevent overfilling
• Pump to guarantee efficiency regardless of water pressure
• Deluxe ceramic dispensing tap and plumbing connection both with a tube attached for easy installation.

For sizing advice, please contact our office for assistance.

Specification

Code

RO-SL8000

Maximum Pressure

7.0 Bar

Performance

20 litres of water in 2 hours

Filtration

5 Stage

System Dimensions

W x D x H (mm)

400 x 190 x 460

Tank Dimensions

C x D x H (mm)

930 x 320 x 360
