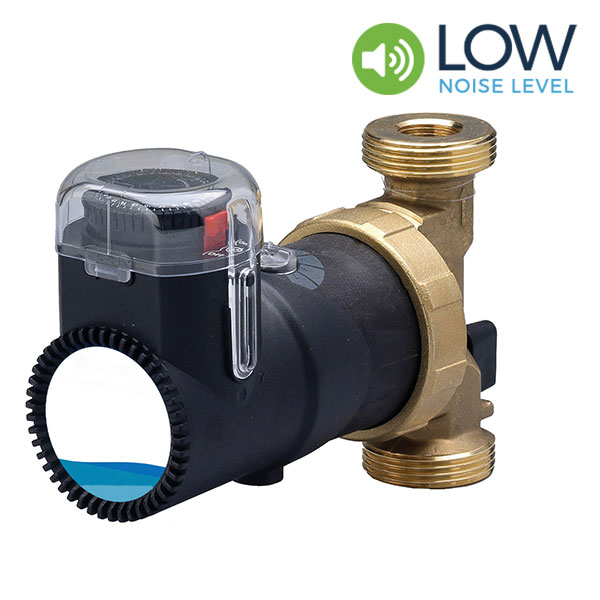

Eco-PRO

High Efficiency Hot Water Circulation Pumps

Description

Application : Designed for use in residential hot water secondary circulation.

The Eco-PRO are highly efficient bronze hot water circulation pumps, which are based on the proven shaftless spherical motor design with ECM technology and permanent magnet. This cost effective design combines the best in efficiency and low noise.

The Eco-PRO features includes automatic ventilation mode, air purge mode, stand-by mode, self diagnostic and malfunction detection and comes complete with heat insulation shell. Suitable for installing in horizontal or vertical piping, in horizontal piping not with the motor housing upward. Protection class IP44.

Options include:  clock (timer) and/or temperature setting (temperature probe).

Variants of these circulation pumps are suitable for use in houses and multiple occupancy dwellings. They comply with German Drinking Water Regulations, and by circulating the drinking water they provide effective protection against legionella. Warm water circulation ensures that warm water is immediately available even when the furthest positioned tap is turned on.

For sizing advice, please contact our office for assistance.

Specification

Model

Eco-PRO 15-1/65

Eco-PRO 15-1/110

Product Code

CPEB5000

CPEB5010

… with Temperature Probe (R)

CPEB5100

CPEB5110

… with Timer (U)

CPEB5200

CPEB5210

… with Temperature Probe & Timer (RU)

CPEB5300

CPEB5310

Max Head

1.0 m

1.0 m

Liquid Temperature

(not condensing, not freezing)

-10’C to +95’C

-10’C to +95’C

Motor Rating

Single Phase, 1x 230V

Single Phase, 1x 230V

Connection

½”

1.25”

Length

65 mm

110 mm
