Smart Tank GRP

Mains Boosting Package Solution

Description

Application : Overcome low water pressures.

Suitable for cold water boosting applications and those with a requirement for CAT5 AB backflow protection. This is the highest level of protection, with a weir overflow on the side of the tank. This ensures there is always an air gap between the water level and tank inlet.

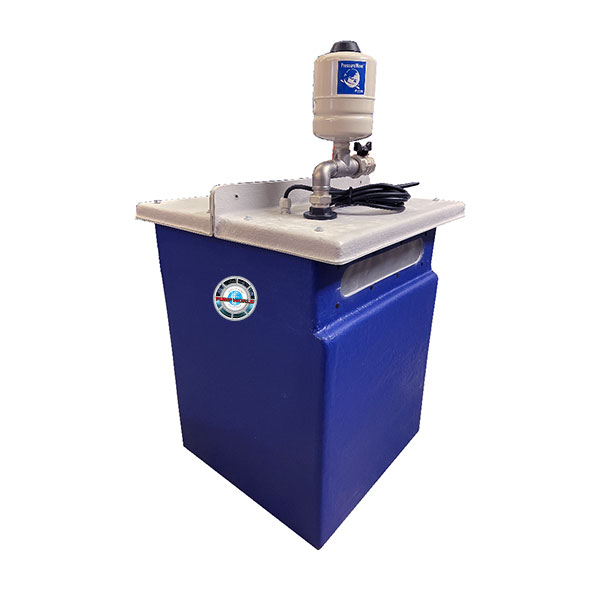

A single phase, pressure pump installed within a WRAS Approved water storage tank manufactured from GRP with 25 mm insulation. The tank is of a compact design, with a narrow width ideal for access through doorways.

The kit includes a WRAS Approved 3/4" high flow ball valve, low level water protection, fully adjustable WRAS Approved pressure reducing valve and an expansion tank.

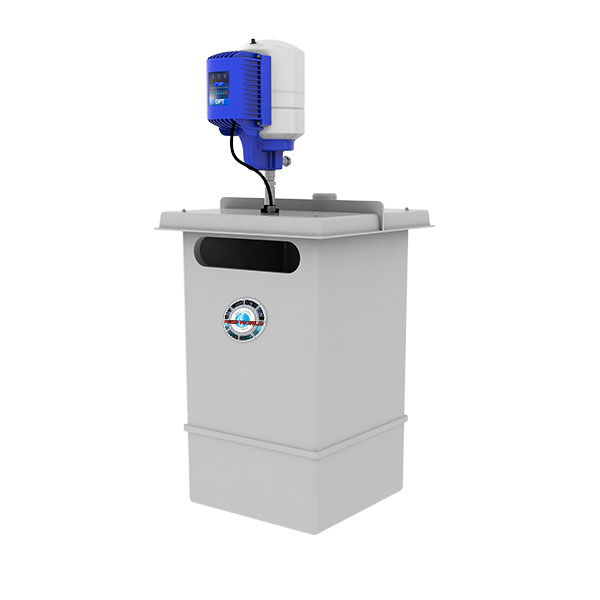

Control options are fixed speed or variable speed.

Pre-assembled for easy installation.

Wet / pressure tested prior to despatch.

For sizing advice, please contact our office for assistance.

Specification

Tank Capacity

187 Litre

251 Litre

305 Litre

375 Litre

Fixed Speed Code

PTP-DR2187F

PTP-DR2251F

PTP-DR2305F

PTP-DR2375F

Variable Speed Code

PTP-DR2187V

PTP-DR2251V

PTP-DR2305V

PTP-DR2375V

Max Pressure

4.5 Bar

4.5 Bar

4.5 Bar

4.5 Bar

Max Allowable Static Head

12.0 m

12.0 m

12.0 m

12.0 m

Max Flow

1.4 lps

1.4 lps

1.4 lps

1.4 lps

Motor Rating

Single Phase

Single Phase

Single Phase

Single Phase

Inlet / Outlet Connection

¾”

¾”

¾”

¾”

Overflow Connection

1.25”

1.25”

1.25”

1.25”

Dimensions

L x W x H (mm)

610 x 670 x 1090

610 x 670 x 1340

610 x 670 x 1540

610 x 670 x 1840
