AF & AFP Water Conditioners

Domestic & Commercial Applications

Description

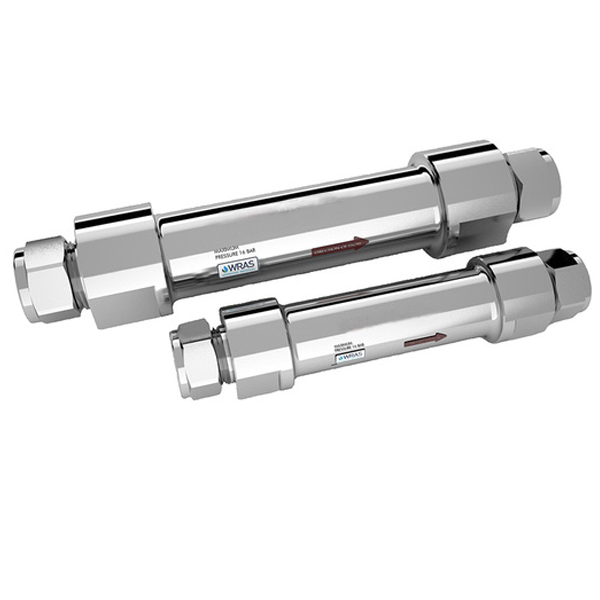

AF Conditioners

AFP Conditioners

Application : Protect against the buildup of limescale.

The AF range of water conditioners offer maximum protection for

fluid systems and their components against the buildup of limescale. Featuring a unique patented alloy coil, the unit uses a catalytic method of water treatment to change the calcium and bicarbonate ions that precipitate from the water forming an insoluble microscopic calcium carbonate crystal called aragonite, the smooth surface of this crystal cannot adhere to surfaces.

Suitable for whole house or system protection; protecting appliances, hot water cylinders, heating systems and pipework from hard water limescale build up. The reduction of limescale results in efficient, longer-lasting systems with less spotting or marks on stainless steel sinks and worktops, an improvement in some dry skin conditions and better tasting water from the tap. Stainless steel housing.  Fit and forget installation, long life expectancy.

The AF models require no power supply and are WRAS Approved.

The AFP models include a power regulator for added performance.

Flow rates shown are optimum operational flow rate.

For sizing advice, please contact our office for assistance.

Specification

Model

AF015

AF022

Code

RA-IN2000

RA-IN2010

Flow Rate

7 - 22 lpm

22 - 45 lpm

Connection

15 mm Compression

22 mm

Compression

Length

158 mm

200 mm

Model

AFP22PR

AFP34PR

AFP10PR

AFP14PR

AFP112PR

AFP20PR

Code

RA-IN2100

RA-IN2200

RA-IN2300

RA-IN2400

RA-IN2500

RA-IN2600

Flow Rate

22 - 45 lpm

22 - 45 lpm

45 - 74 lpm

75 - 117 lpm

117 - 170 lpm

170 - 264 lpm

Connection

22 mm

Compression

¾” BSPM

1.0” BSPM

1.25” BSPM

1.5” BSPM

2.0” BSPM

Length

200 mm

200 mm

305 mm

550 mm

550 mm

550 mm
