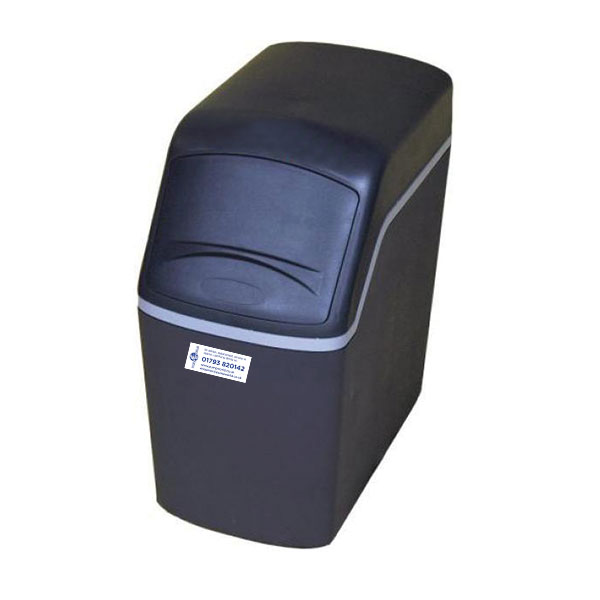

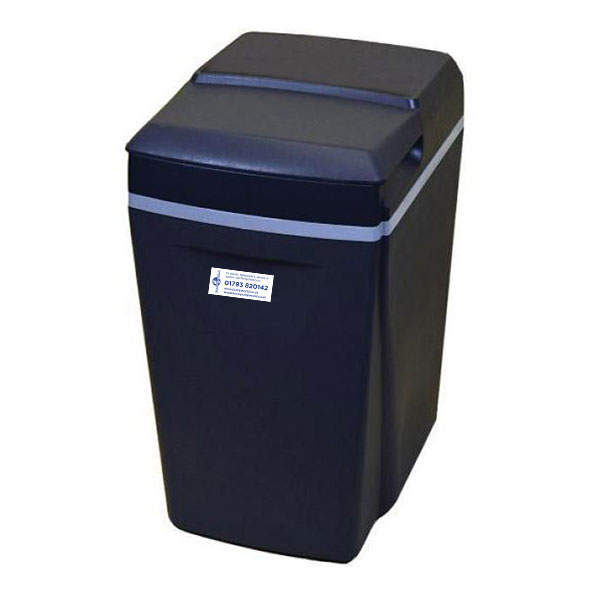

RM-GW Metered Softener

Super Fast Regeneration

Description

Application : Water softeners collect hard water salts from your water that form limescale. They prevent staining and watermarks on sanitaryware, calcium build up on heating elements and boosting equipment.

This water softener range has been developed using many years of engineering excellence and manufactured using the latest robotics and quality control standards. The patented vessel design ensures great water quality throughout the range of flow as well as efficient use of salt and water.

Auto adjusting controller meters, regenerates and adjusts salt dosage. The softening resin with faster exchange kinetics offer fast, efficient regeneration. Built in auto flushing filter to 20 micron.

In/Out Pipes Supplied: Pair of  ¾” Bore 1” to ¾“ Female Megaflow. Super Water Flex stainless steel hoses. 600 mm long. Waste Pipe Supplied: Semi rigid 13 mm x 1200 mm. O/F Pipe Supplied: Flexible 16 mm x 2400 mm.

For sizing advice, please contact our office for assistance.

Specification

Model

HFPro 58 LPM

HFPro 80 LPM

Code

RM-GW1000

RM-GW1100

Suitable For

Up to 7 people (approx)

Larger Family Homes

Salt

Usage / Regeneration

Tablet or Block

Variable on Demand

Tablet

Variable on Demand

Water Use / Regeneration

43 Litres (Default)

53 Litres (Default)

Capacity (max@300mg/l hardness)

2300 Litres

4900 Litres

Media Volume

11.3 Litres

20 Litres

Max Feed Water Hardness

600 mg/l

1200 mg/l

Maximum Ferrous Iron

3mg/l

10 mg/l

Minimum pH

7

7

Working Pressure

5.0 Bar (1.4 Bar min)

5.0 Bar (1.4 Bar min)

Peak Flow Rate

58 lpm (31 lpm at 1.0 Bar)

80 lpm (45 lpm at 1.0 Bar)

Regeneration

9 minutes

20 minutes

In / Out Connection

1.0” Threaded

1.0” Threaded

Dimensions

L x D x H (mm)

292 x 470 x 546

380 x 502 x 640
