Smartpro Twin H SM

Energy Efficient Boosting

Description

Application : Ideal for domestic and commercial boosting.

A compact variable speed horizontal twin booster set with best in class efficiency and state of the art hydraulics for the lowest possible operation costs. Suited for residential and commercial pressure boosting. Certified for drinking water use (WRAS and ACS).

Permanent magnet motor with IES2 drive for top efficiency. Thick, robust stainless steel casing, high quality bearings and high efficiency hydraulics minimise noise and provide a long service life.

Precise and consistent control - the intelligent variable speed inverter operates in partial loads, preventing water hammer and provides accurate speed control during operation and the smooth start-up reduces mechanical stress and wear. The pumps are easy to commission, set up and operate. Parameters and alarms appear on digital display to provide complete control of system operation. Communication via Modbus and BACnet with optional cards.

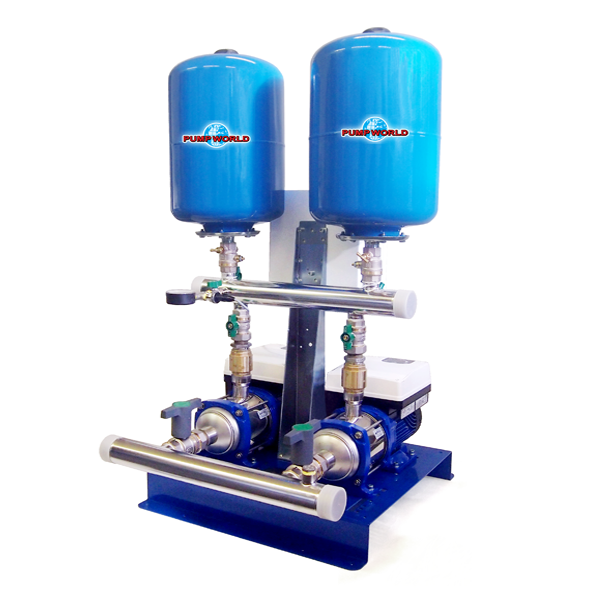

The pump set is completed with 2x variable speed pumps with inverters, 2x 24 litre vessels, control panel and stainless steel manifolds mounted on a steel base. Accessories to complete installation recommended (supplied separately).

For sizing advice, please contact our office for assistance.

Specification                                                                       Optional

Model

Smartpro Twin 11E

Smartpro Twin 12E

2x Flexibles 2.0”

Code

BPV2012

BPV2020

1x Double Protection Float Switch

Max Pressure

7.7 Bar

6.6 Bar

Max Flow

170 lpm

(two pumps running)

340 lpm

(two pumps running)

Motor Rating

Single Phase

Single Phase

Connection

2.0”

2.0”

Dimensions

L x W x H (mm)

560 x 810 x 1090

560 x 836 x 1151

Services

Commissioning

This service will have a manufacturer engineer conduct a site visit after install, to check the installation and tune the set to the client’s requirements.
