Cellar Drain System

Below Ground Waste Water Lifting Unit

Description

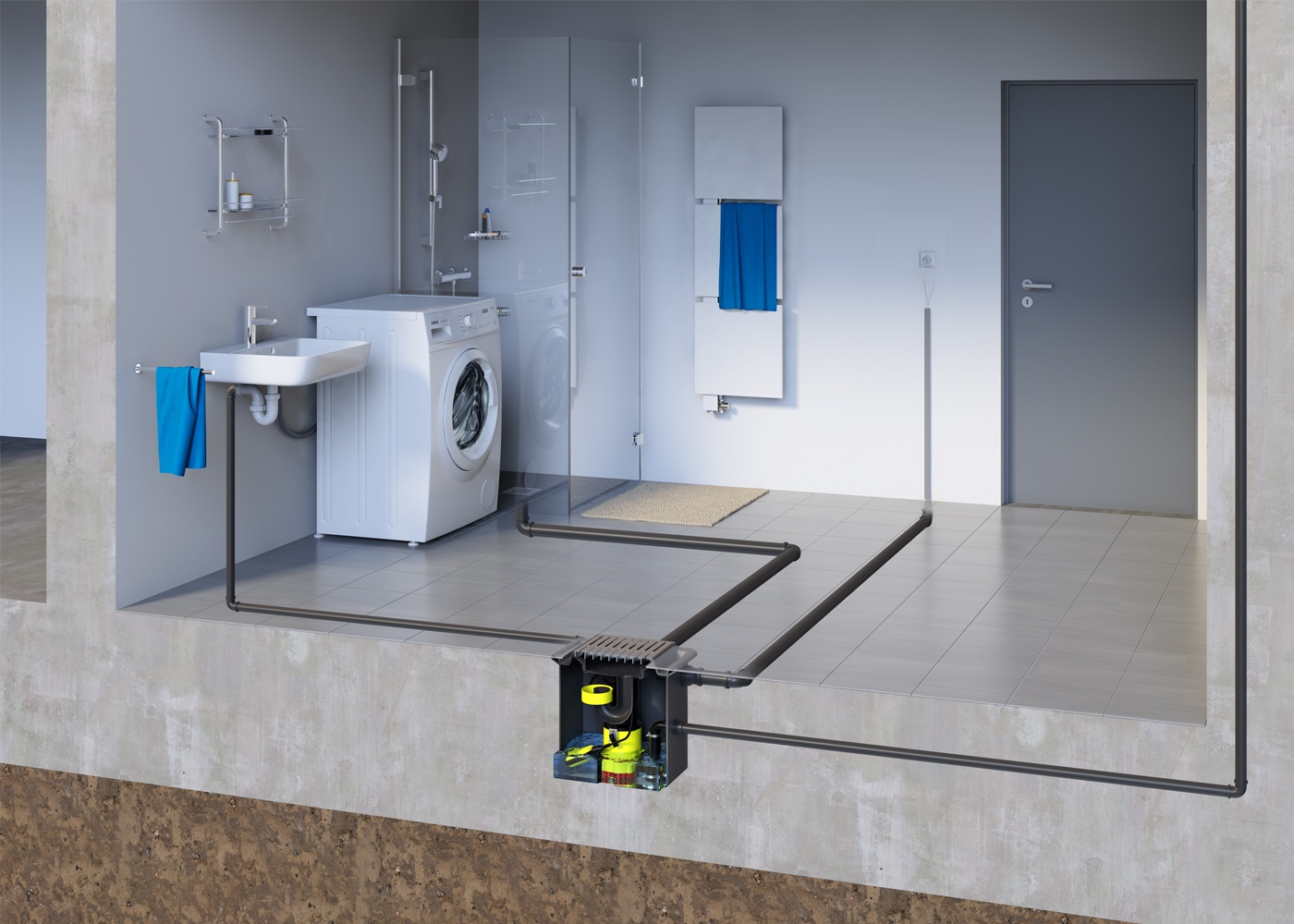

A pre-fabricated lifting station suitable for below-ground installation in frost-protected rooms below the backflow level  - please refer to instruction manual for suitable structure.

Suitable for the pumping of domestic waste water without faeces from washing machines, showers, washbasins etc.

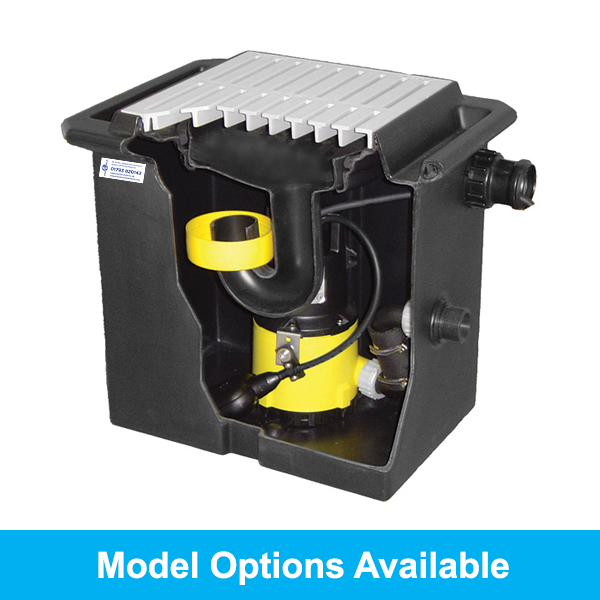

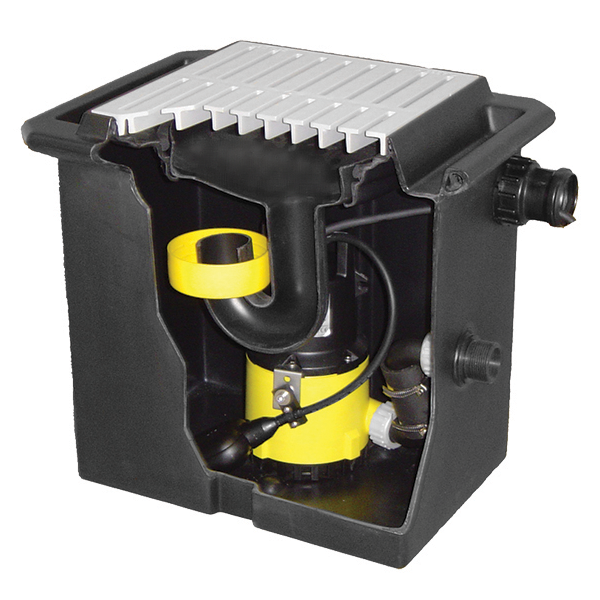

The unit comprises a polyethylene tank with waste water submersible pump with float switch for automatic operation mounted within.

Supplied ready to plug in with 10.0m connection cable and Schuko plug. Plastic grating cover, siphon and sand trap. Connection for ventilation and cable duct DN 50(HT). Inlet DN50 (HT) is enclosed loose - can be used on site by drilling into the tank. Pressure outlet 1.25" external thread with integrated non-return valve.

Operating temperature 40’C (briefly up to 90’C).

Protection degree IP68.

To check suitability for your application, please call our technical team on 01793 820142.

Specification

Product Code

H1700

Max Head

11.0 m

Max Flow

180 lpm

Motor Rating

230V

Tank Capacity

20 Litre

Free Passage

10 mm

Discharge

G 1.25”

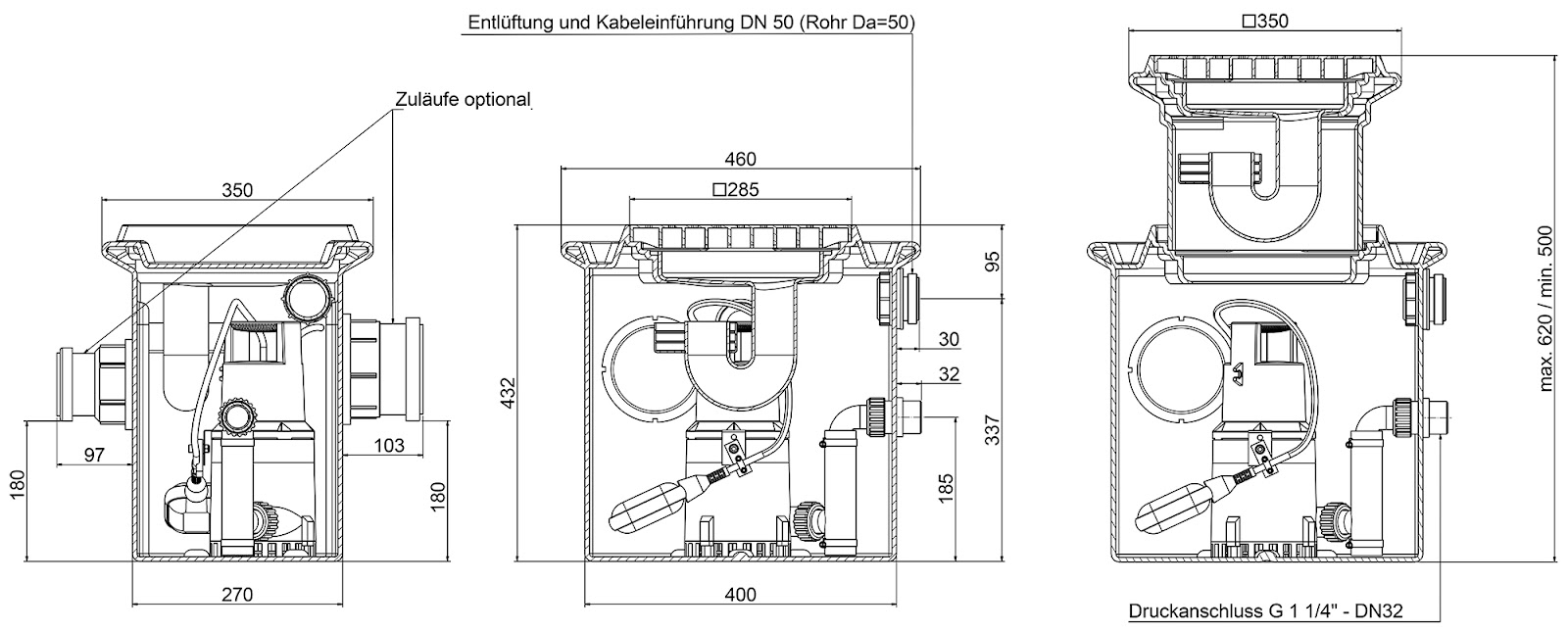

Dimensions

L x W x H (mm)

460 x 350 x 432
