Stainless Steel Submersibles

Quick / Emergency Dewatering of Home and Garden

Description

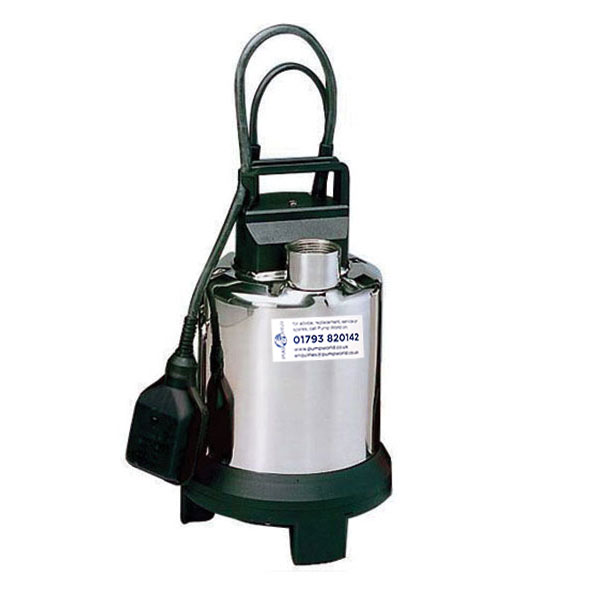

External Float

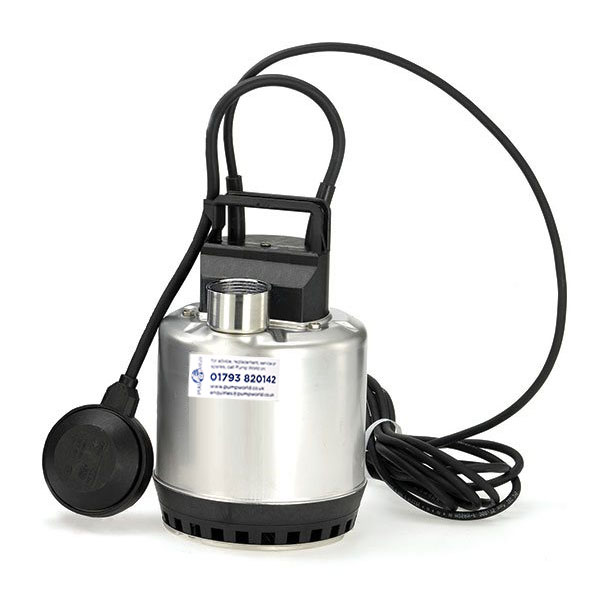

Magnetic Float

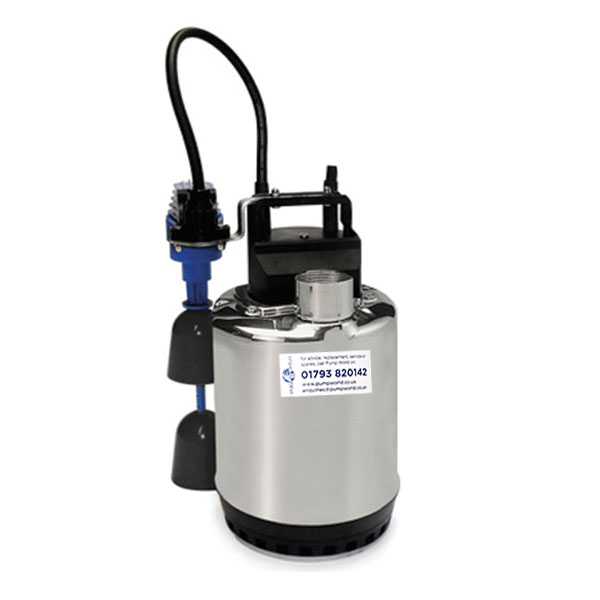

Vortex Impeller

Application : Quick and easy solutions for the drainage of

clean and dirty water.

An electric submersible pump range that is versatile, corrosion resistant and compact. Suitable for drainage, infiltration water and the emptying of pools, ponds, tanks and reservoirs. This pump is mainly made of robust stainless steel AISI 304 and the motor has thermal overload protection. The single phase version has a built-in capacitor, lever regulation and cable with a plug which enables fully automatic operation. Maximum liquid temperature 40’C.

It is also suitable for the emptying of residential sump pits, rainwater tanks or laundry drainage. Garden and lawn irrigation, with suction from rainwater tanks. Emergency draining of flooded basements and garages. Transfer of water from tanks and basins. Maximum immersion depth 5m.

Options: external float, non-clogging magnetic float for confined spaces or a vortex impeller for dirty water with solids.

A142 - Flood Kit - This optional kit includes the A140 Sub External Float 7.0M, 6.0m coupling hose, and a plastic storage box that doubles as a strainer during operation. A 6.0m extension hose is available if required.

For sizing advice, please contact our office for assistance.

Specification

Type

External Float

Magnetic Float

Vortex Impeller

Model

7.0M

11.0M

7.0 M

11.0 M

7.0 M

Code

A140

A150

A160A

A165A

A152VX

Max Head

7.0 m

11.0 m

7.0 m

11.0 m

7.0 m

Max Flow

135 lpm

220 lpm

135 lpm

220 lpm

175 lpm

Solids

10 mm

10 mm

10 mm

10 mm

20 mm

Discharge

1.25”

1.25”

1.25”

1.25”

1.25”

Pump Dimensions

D x H (mm)

155 x 245

155 x 285

200 x 245

200 x 285

175 x 310

Sump Dimensions

L x W (mm)

400 x 400

400 x 400

200 x 200

200 x 200

400 x 400
