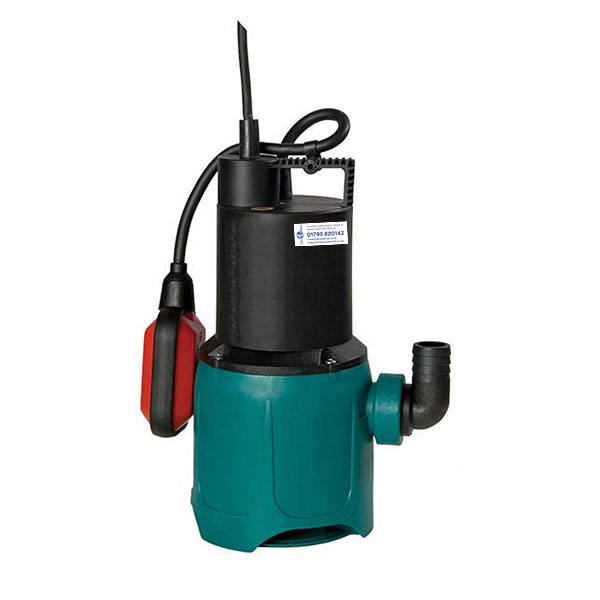

Submersible 200SA                                    Submersibles for Water Drainage

Description

Application : Suitable for draining clear or slightly dirty waters in permanent or portable installations.

Suited to ponds, water features, fountains, water walls and special effects.

The construction incorporates heavy duty bearings, a hard stainless steel (410) shaft fitted with an ultra-hard wearing silicon carbide mechanical seal (in a chamber of non-toxic oil) for durability and continuous operation.

The motor case, pump body, strainer and impeller are constructed of thermoplastic for corrosion resistance.

The model is automatic and can handle up to 19mm solids.

Supplied with 10 metres of heavy duty rubber power cable.

For sizing advice, please contact our office for assistance.

Specification                                 Full Kit Option

Product Code

A149

Product Code

A149KIT

Maximum Head

7.0 m

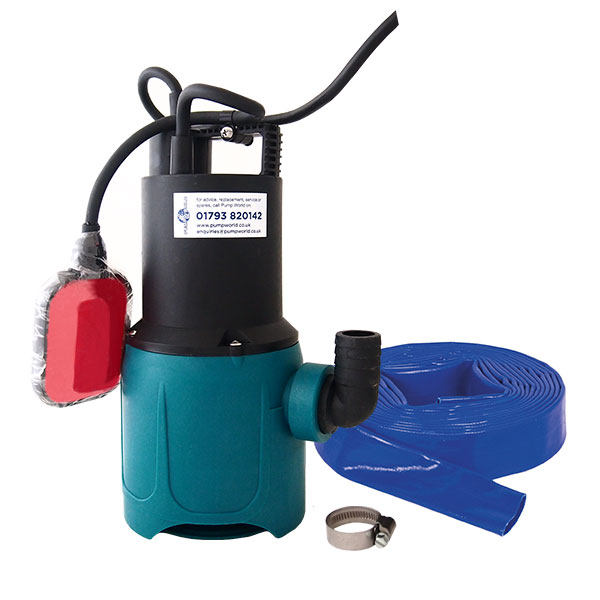

Purchase the full kit option to make installation easier!

The components include:

+ Submersible 200 SA

+ 10.0m PVC Layflat Hose

+ Hose Clip

+ Hose Tail

Maximum Flow

140 lpm

Free Passage

19 mm

Discharge

1.25” (32 mm)

Dimensions

L x W x H (mm)

170 x 146 x 330
