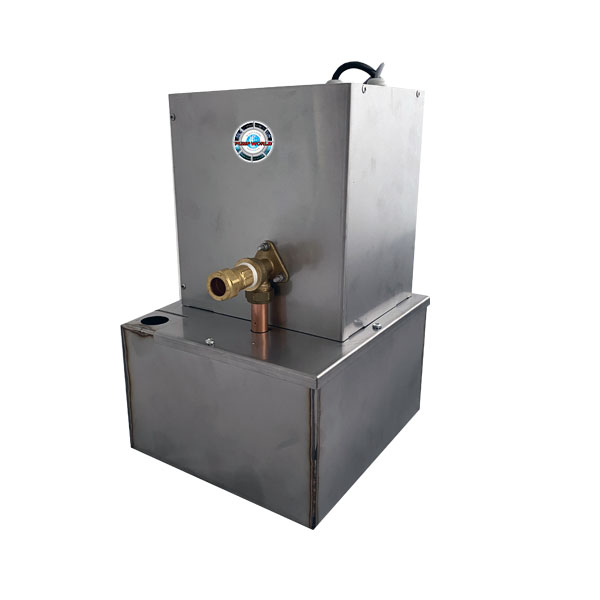

Heavy Duty Hot Water Waste Set                      Above-Ground Waste Water Lifting Unit

Description

Application : Pumping of high temperature and pressure relief discharge.

Ideal for unvented cylinder temperature and pressure relief discharge and steam humidifiers, this pump set incorporates thermal overload protection and a volt free high level alarm switch, with a 5 litre stainless steel tank, brass non-return valve and copper outlet.

The pump is controlled by a float / switch mechanism which turns the pump on to discharge water when approximately 100 mm of water collects in the tank. The pump switches off automatically when the tank drains to approximately 95 mm.

The unit has one of the largest discharge rates of 20 lpm and can handle both high temperature up to 100 degrees and high flow rates.

For sizing advice, please contact our office for assistance.

Specification

Product Code

H1100

Max Lift

10.0 m

8.0 m for Unvented Cylinders

Max Flow

20 lpm

Motor Rating

240V

Max Temperature

100˚C

On Level

100 mm

Off Level

95 mm

Inlet

25 mm

Inlet Height

130 mm

Outlet

15 mm

Dimensions

L x W x H (mm)

235 x 215 x 360
