High Head Tek

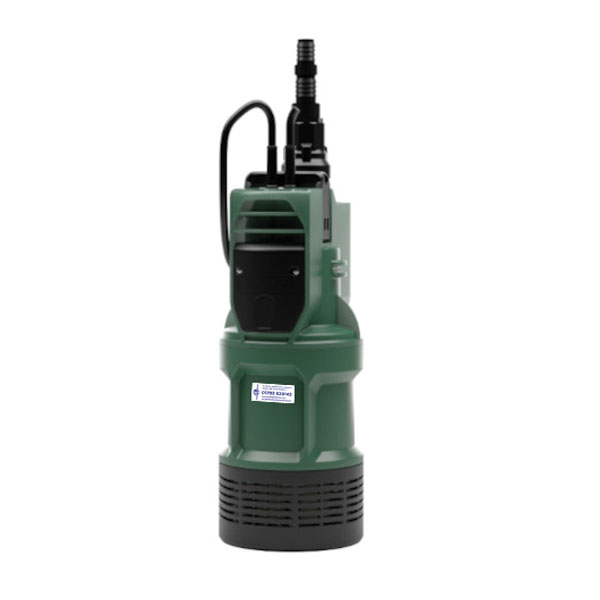

Multi Impeller Submersible Pumps

Description

Application : Quick and easy solutions for the boosting and drainage of clean water.

Submersible multi-impeller pump range for clean water, designed for pressurisation, rainwater reuse, gardening and irrigation in residential building service.

Multi-impeller pump with built-in non-return valve and debris filter. The pump has been renewed to further increase its reliability and ergonomics in transport (the handle has been entirely redesigned). Quick access to the capacitor compartment. A four-section fitting-reducer is supplied as standard.

Pump body and impellers in technopolymer to resist corrosion and oxidation. Technopolymer anti-debris filter. These automatic models are equipped with a float switch for protection against dry running. Removable non-return valve.

Submersible asynchronous motor. Motor shaft in stainless steel AISI 416 + AISI 304. Integrated starting capacitor and integrated thermal protection against overheating of the motor. 15 meter power cable included.

For sizing advice, please contact our office for assistance.

Specification

Type

High Head Tek

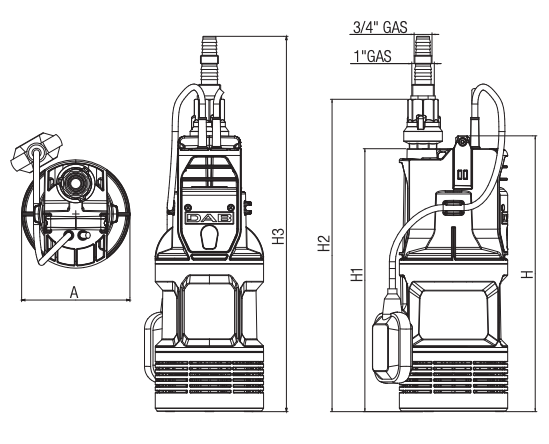

Schematic (mm)

Model

2.0 Bar

3.0 Bar

4.0 Bar

A

Ø 160

Code

A166

A172

A194

H

408 (455)

Max Head

25.0 m

30.0 m

45.0 m

H1

389 (436)

Max Flow

80 lpm

80 lpm

80 lpm

H2

462 (509)

Solids

0 mm

0 mm

0 mm

H3

555 (602)

Discharge

¾” or 1.0”

¾” or 1.0”

¾” or 1.0”

Measurements in brackets are related to the A194.

Dimensions

D x H (mm)

160 x 555

160 x 555

160 x 602
