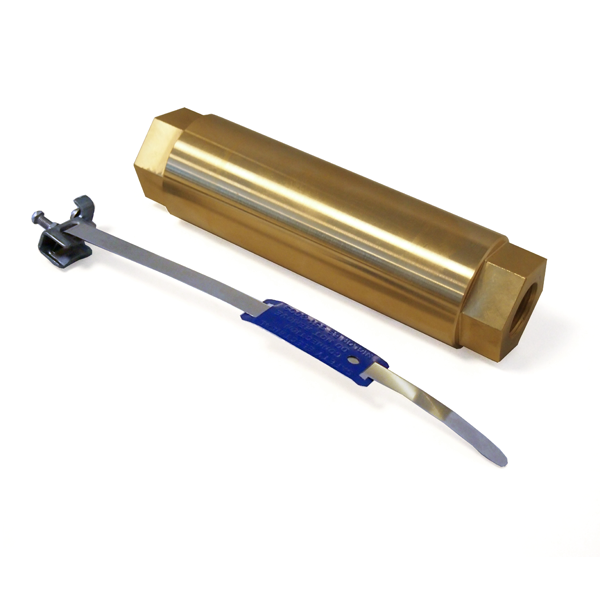

Advanced Crystallisation Process

Water Conditioners Designed, Developed & Manufactured in UK

Description

Application : Inhibit scale and corrosion with the most effective water conditioning technology available.

This water conditioning range are Electrolytic Scale Inhibitors that use a cathode and anode to release ions into the water stream. These ions act as the seed/nucleation point to keep the hardness minerals in suspension so that they harmlessly run to drain.

Scientifically proven UK design that is chemical free, environmentally friendly with no ongoing costs. No power or maintenance required. No commissioning or control panel required. Control both scale and corrosion with an easy and low cost installation. Protect the whole system, WRAS Approved.

ACP units should not be exposed to temperatures outside the operating range of 1 - 75’C, or exceed 10.0 Bar. For optimum performance, the temperature of the water should not exceed 60’C. Pressure drop at maximum flow < 0.2 Bar, To function correctly, all ACP units must be earthed. Once installed the ACP must be kept wet and free from air contact. An analysis of the water should be submitted when proposing to use with borehole or wells.

For sizing advice, please contact our office for assistance.

Specification

Model

ACP 15

ACP 20

ACP 25

ACP 32

ACP 40

Code

RA-AH1000

RA-AH2000

RA-AH2100

RA-AH3000

RA-AH4000

Max Flow

18 lpm

36 lpm

72 lpm

102 lpm

156 lpm

Connection

½” BSP F

¾” BSP F

1.0” BSP F

1.25” BSP F

1.5” BSP F

Dimensions

D x L (mm)

Ø 38 x 150

Ø 57 x 205

Ø 63 x 285

Ø 76 x 345

Ø 82 x 385

Model

ACP 50

ACP 65

ACP 80

ACP 100

Code

RA-AH5000

RA-AH5500

RA-AH6000

RA-AH7000

Max Flow

252 lpm

390 lpm

630 lpm

1080 lpm

Connection

2.0” BSP F

2.5” Flanged

3.0” Flanged

4.0” Flanged

Dimensions

D x L (mm)

Ø 89 x 470

Ø 185 x 427

Ø 200 x 512

Ø 220 x 512
