Automatic Shower Drain Kit

Shower Waste Pump Systems

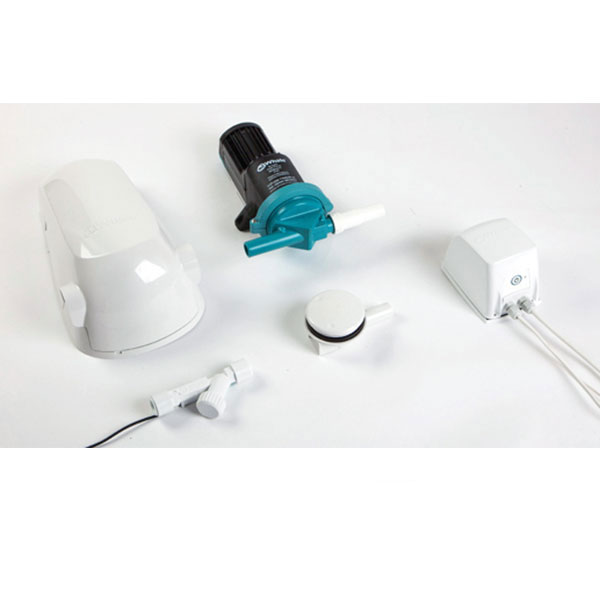

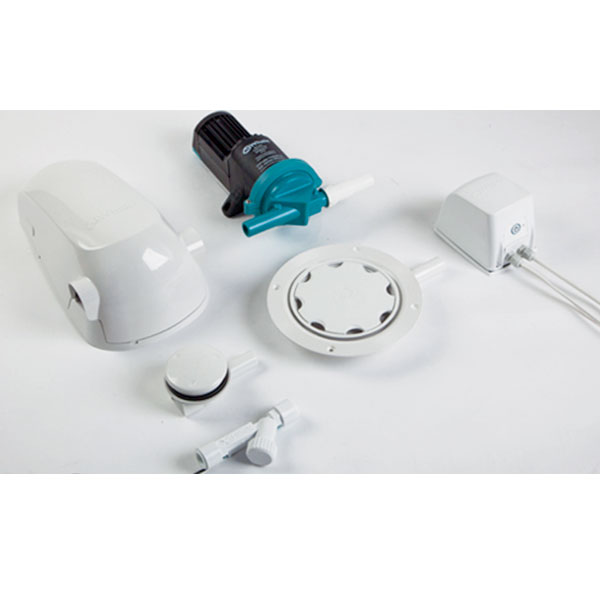

                                         H4610                                                             H4620KIT

Description

Application : Provides shower drainage where gravity drainage is not possible.

The original automatic shower drain kit with proven reliability is now combined with 12 pump speed settings and Active Link diagnostics. High performance, the adjustable pump speed minimises gulley suction noise.

• Draws 3 metres from gulley
• Lifts 0.5 metre
• Pumps 1 metre vertical

Flexible installation options, models available for shower trays or wetroom floors. Compact pump and low voltage transformer will fit into locations with limited space. e.g. airing cupboard. The pump is self-priming with a protective cover, and has a de-puddling cycle where the pump turns on for a brief period, 15 mins after shower is turned off to clear any puddles. IP45 rated. The transformer includes patented Active Link diagnostics. Light to indicate power present and flow switch operation to aid installation and maintenance.

These kits are compatible with electric and mixer showers, but please note, for mixer shower installations an additional flow switch is required. This is already included in the mixer shower kits, or available as an individual component under product code H4560.

For sizing advice, please contact our office for assistance.

Specification                                                          Useful Accessories

Shower Type

Electric Showers

Mixer Showers

H4560 -  Mixer Shower Conversion Kit

Shower Tray Kit

H4610

H4610KIT

Wetroom Floor Kit

H4620KIT

H4625KIT

Max Drainage Capacity

8 lpm

12 lpm

Connection

15 mm

22 mm
