Vessel Boost with PV-5

Accumulator Package Solutions

Description

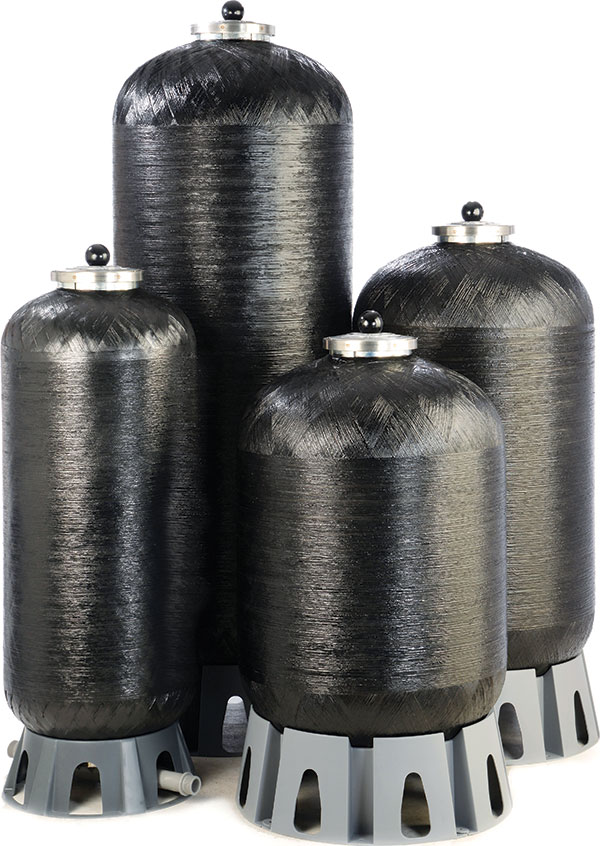

Manufactured in Europe using the latest composite materials and technology. Sturdy, durable and lightweight.

Unique in design and construction, this premium composite accumulator range stores the water between the outer shell and the inner bladder. This eliminates stretching and possible failure of the bladder. It also makes bladder removal and cleaning not only possible but easy. Ideal for applications where legionella control and tank cleaning is a requirement. Due to this unique technology it is possible to increase the pressure differential and therefore the net volume of stored water.

For sizing advice, please contact our office for assistance.

Specification                                                                                Kit

Model

220V

440V

660V

28mm NRV

Code

FA-GW1000

FA-GW1200

FA-GW1300

28mm ISO Valve

Nominal Tank Volume

150 Litre

300 Litre

450 Litre

28mm Equal Tee

Max Operating Pressure

8.0 Bar

Connector Pipe

Top of Tank

Air Valve

Bottom of Tank (Type 1)

1 opening 160mm with V-clamps and 1 tube 1.25”

Horizontal layout with mounting cradle available on request.

Dimensions

D x H (mm)

470 x 1220

620 x 1315

620 x 1825
