Description

Application : Supplies hot water in domestic and small commercial applications.

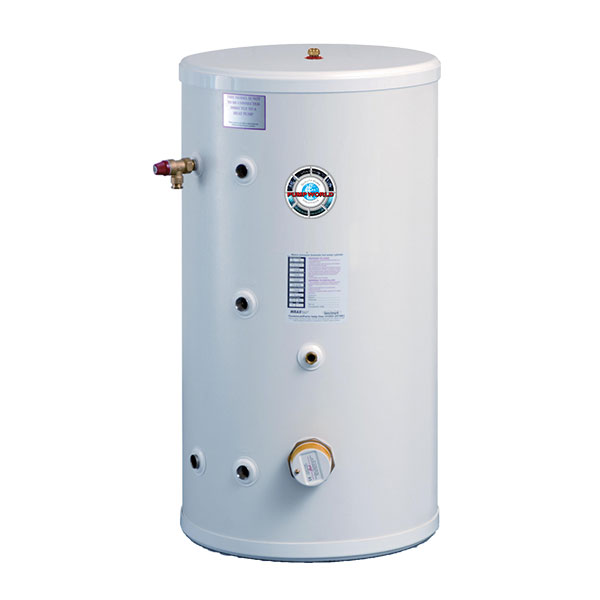

Hot water storage cylinders feature an internal coil with an indirect design for use with a gas or oil-fired boiler as the main heat source (either sealed system or open vented).

Manufactured in duplex stainless steel for superior corrosion resistance, with 316L grade stainless steel fittings and coils.

Fully insulated to minimise any heat loss. Highly efficient and

supplied with a factory fitted immersion to provide back-up heat.

Full unvented kit supplied including remote expansion vessel.

Factory fitted temperature and pressure relief valve, plus a

3.0 Bar pressure regulating valve.

These cylinders are in a vertical configuration. Horizontal configuration available on request up to 300 Litre.

For sizing advice, please contact our office for assistance.

Specification

Capacity

125 Litre

150 Litre

170 Litre

200 Litre

250 Litre

300 Litre

400 Litre

500 Litre

Product Code

FST125

FST150

FST170

FST200

FST250

FST300

FST400

FST500

Max Pressure

3.0 Bar

3.0 Bar

3.0 Bar

3.0 Bar

3.0 Bar

3.0 Bar

3.0 Bar

3.0 Bar

Heat Up Time

36 mins

37 mins

36 mins

33 mins

35 mins

40 mins

45 mins

50 mins

Recovery Time

25 mins

26 mins

25 mins

24 mins

25 mins

29 mins

35 mins

40 mins

Immersion

3.0 kw

3.0 kw

3.0 kw

3.0 kw

3.0 kw

3.0 kw

3.0 kw

3.0 kw

Connection

22 mm

22 mm

22 mm

22 mm

22 mm

22 mm

28 mm

28 mm

Dimensions

D x H mm

510 x

935

510 x 1060

510 x 1200

580 x 1120

580 x 1490

580 x 1780

710 x 1590

710 x 1835

Recommended Accessories

CPHS8000   Smartcirc N 25-4/130

CPHS8500   Smartcirc N 25-6/130

The Smartcirc stainless steel circulators with 1.5” port to provide a secondary hot water circuit.
