Superpro                                               Fixed Speed Booster Pumps


Description

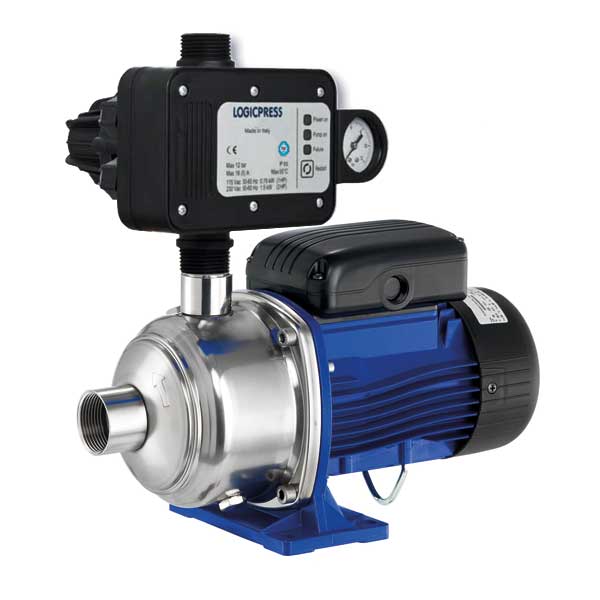

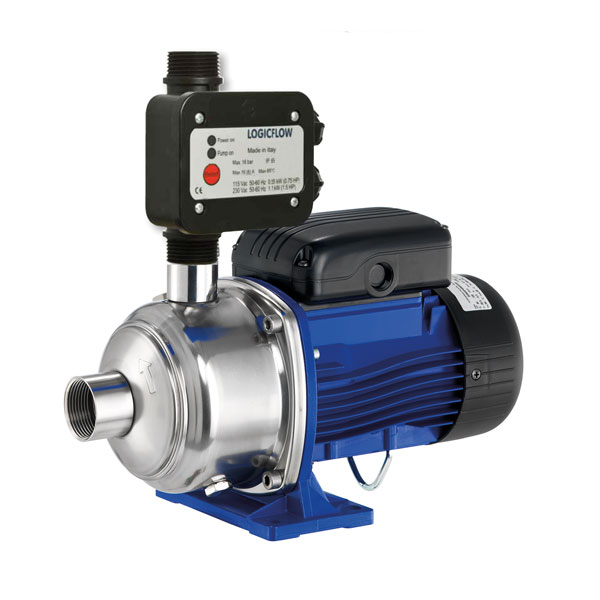

A non-self-priming, end-suction horizontal multistage, high pressure centrifugal pump range, with axial threaded inlet and radial threaded outlet. The pumps are close-coupled design and are equipped with non-standard motors. They are highly modular pumps that are fitted with an innovative hydraulic design that secures high efficiency performances and an increased Mean Time Between Failure.

Designed to cover a wide range of applications in the residential and small commercial building services for pressure boosting. The pump is WRAS Approved.

The Logic electronic pressure switch starts and stops the pump depending on opening and closing of the outlets. Stops the pump in case of water shortage and protects it from dry running. Equipped with automatic restarts in case of failure and anti-jamming function.

The Superpro is supplied as standard with an installation kit that includes flexibles, strainer, isolation valves and acoustic mat. The optional DP Float Kit will add a double protection float switch and control box that protects the pump from low water level. Low water level can cause air locks, poor performance, noise and damage to the pump, so the DP Float Kit option is recommended.

For sizing advice, please contact our office for assistance.

Specification

Product Name

Superpro 3e

Superpro 4e

Superpro 5a

Superpro 6a

Product Code

P1076PL

P1116PL

P1208PL

P1215PL

DP Float Kit

P1076MP

P1116MP

P1208MP

P1215MP

Max Pressure

3.5 Bar

4.5 Bar

5.8 Bar

5.2 Bar

Max Flow

70 lpm

70 lpm

70 lpm

120 lpm

Motor Rating

230V

230V

230V

230V

Connection

1.0”

1.0”

1.0”

1.25” / 1.0”

Dimensions

L x W x H (mm)

350 x 190 x 349

370 x 190 x 349

435 x 190 x 365

437 x 190 x 365
