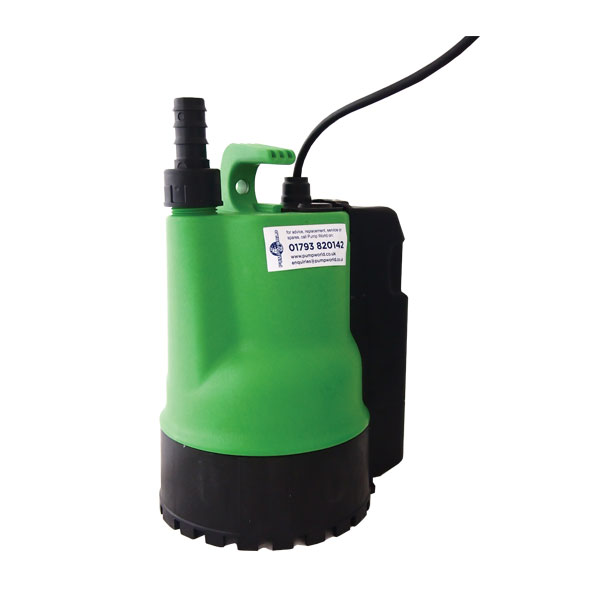

Submersible 500 PW                                    Submersibles for Water Drainage

Description

Application : Suitable for draining clear or slightly dirty waters in permanent or portable installations.

Designed to empty tanks, drain swimming pools, empty underpasses and tunnels, drain pits, cellars, laundry rooms and shower rooms, plus many more drainage applications. Not recommended for ponds or water features.

Maximum versatility, long-life and easy maintenance. Single phase motor with incorporated thermal protection and automatic reset, special voltages and frequencies on demand. Water cooled motor with top discharge protects the pump from overheating even when partially submerged. Integrated sensors allow the user to decide at what level to start the pump automatically, avoiding unwanted flooding. Simply operating on the mechanical control external lever, the user can activate MAN or AUTO to pump water at a pre-fixed level.

On level 115 mm, off level 60 mm. Open impellers for passage of soft solids at 9 mm. When used for manual drainage it can pump water levels down to 10 mm from a priming depth of 30 mm. Constructed from antioxidant and corrosion resistant materials. Supplied with 10.0 m heavy duty power cable.

For sizing advice, please contact our office for assistance.

Specification                                 Full Kit Option

Product Code

A139

Product Code

A139KIT

Maximum Head

7.5 m

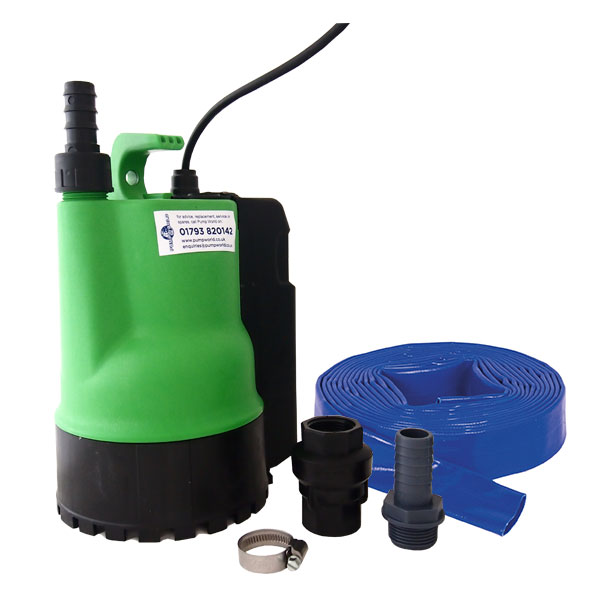

Purchase the full kit option to make installation easier!

The components include:

+ Submersible Ego 500 PW

+ 10.0m PVC Layflat Hose

+ Non Return Valve

+ Hose Clip

+ Hose Tail

Maximum Flow

170 lpm

Free Passage

9 mm

Discharge

25 mm

Dimensions

L x W x H (mm)

206 x 168 x 280
