Microbox 4

Prefabricated Lifting Station for Clean & Grey Water

Description

Suitable for delivering clean and grey water to main sewer lines located at a higher level, or where gravity drainage is not possible.

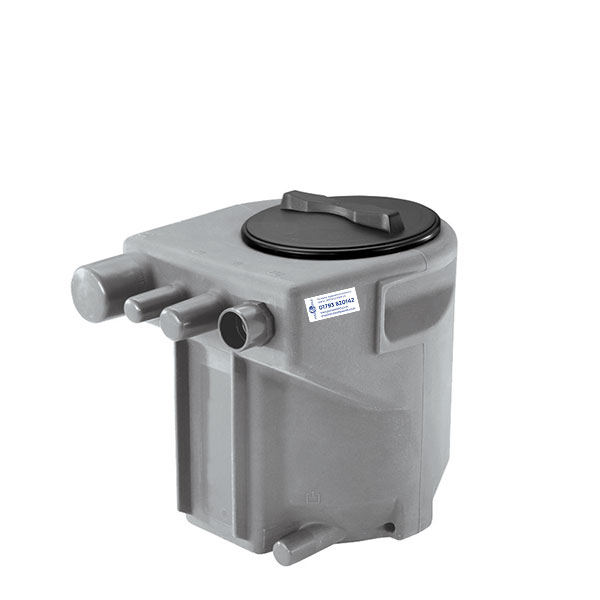

An all-in-one pre-fabricated lifting station in compliance with EN12050-2 standard, suitable for above or below ground installation. If buried, it must be within a suitable structure (able to withstand vehicle or foot traffic) - please refer to instruction manual.

The kit includes a 100% recyclable polyethylene tank, cable glands for power supply cables and floats, delivery pipes with fast connection and ring nut for easy disassembly of the pump. Three fast connections: 1x DN110 for inlet, 1x DN50 for ventilation and 1x DN65 for cable connection. It has integrated handles.

The pump is a stainless steel submersible with vortex impeller - suitable for clean and grey water.

Not suitable for toilet waste. Float switch included.

Installation is simplified with quick pipe and cable connection, pre-installed delivery pump and unions. Tried and tested pump technology with easy maintenance and repair.

Three phase supply available on request.

Please note : this product is made-to-order and once the order has been placed, cannot be cancelled or returned unless faulty. If you are interested in the product, please call our team on 01793 820142 to ensure suitability for your application.

Specification                                   Optional Accessories

Product Name

Microbox 4 VX7

Ball Check Valves

Product Code

H3240

Alarm Kit

Max Head

7.0 m

Connector Kit

Max Flow

175 lpm

Manual Pump

Motor Rating

Single Phase

Control Panel

Tank Capacity

110 Litre

Delivery Pipes

Rp 1.25 or Rp 1.5

Inlet

DN110

Free Passage

20 mm

Dimensions

L x W x H (mm)

680 x 500 x 602
