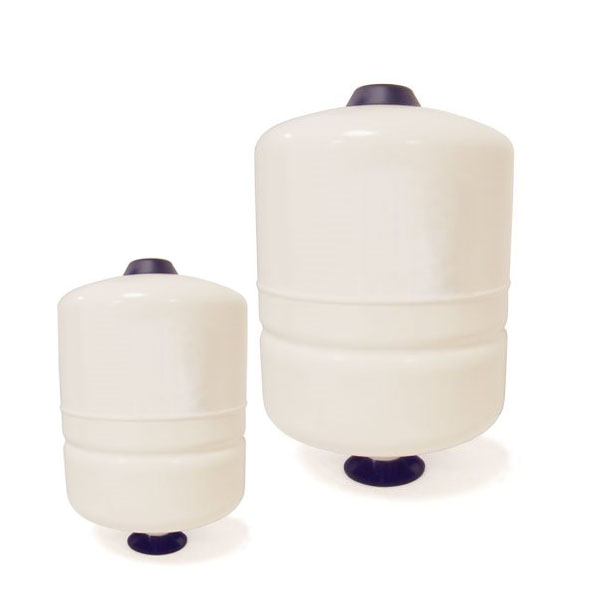

FC-HD White Vessels 90'C

White Vessels 90’C
Single Diaphragm Design

Description

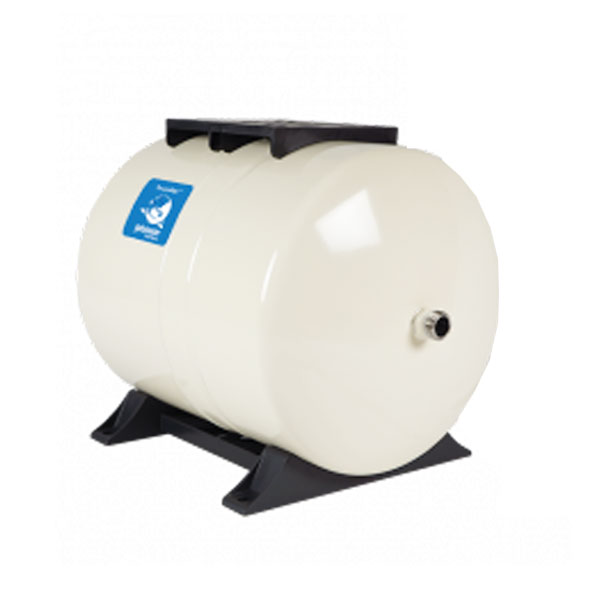

Application: Smooth pump operation. Ideally suited to a wide range of applications including booster systems, thermal expansion, irrigation systems and hydraulic hammer arresting. Constructed of a virgin polypropylene liner combined with an FDA approved high grade butyl diaphragm, held against the wall of the tank with a steel clench ring. The brass air valve, sealed by a threaded o-ring valve cap, prevents air leaks. Water enters the tank through a patented stainless steel water connection. The diaphragm and liner are reinforced for longer life. All internal parts are rounded to prevent piercing of the diaphragm in extreme conditions. The water connection uniquely provides a dual water / air seal ensuring a leak free and low maintenance vessel. On the exterior the almond-colored dual layer polyurethane paint finish provides hundreds of hours of UV and salt spray protection. Quality tested throughout the production process to ensure their structural integrity. Available in multiple capacity options, and vertical or horizontal configuration. For sizing advice, please contact our office for assistance.
