We recommend you obtain the ROM in a legal way.

Dreamcast version Federal vs Zeon & DX can be dumped using real Dreamcast.

An easiest way is using an SD card reader..

Please search on Google for the specific method.

There may be ROM images on the Internet, but we will not introduce it here. Please search on Google at your own risk.

We prohibit topics related to ROM downloads.

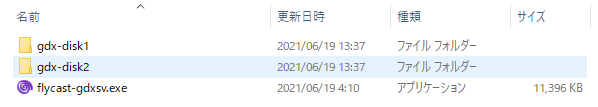

Click the .exe file to launch flycast.

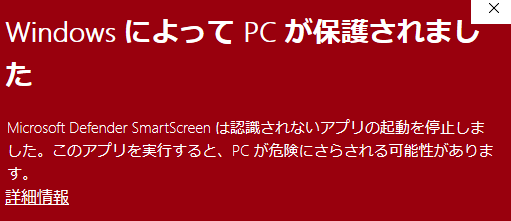

If the screen shown in the figure appears, click the detailed information and then click Execute.

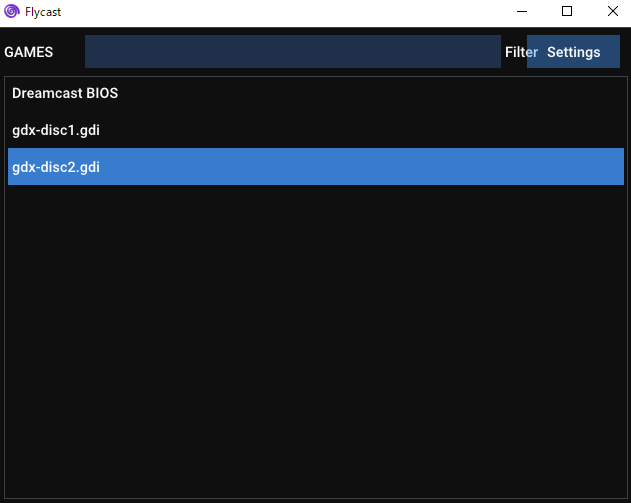

When flycast starts, the prepared gdi file will be displayed in the list.

Click gdx-disc2.gdi to launch the game.

* If the flycast does not launch:

See the Support section.

* If the gdi file is not displayed in the list:

the emulator cannot recognize the game image.

Press the [Settings] button, press the [Add] button of Content Location, and select the folder where the game image is saved.

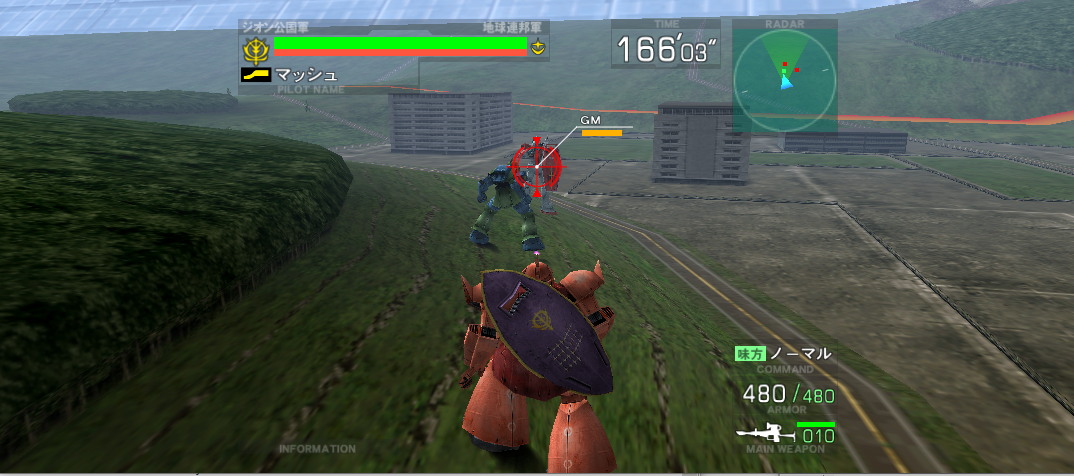

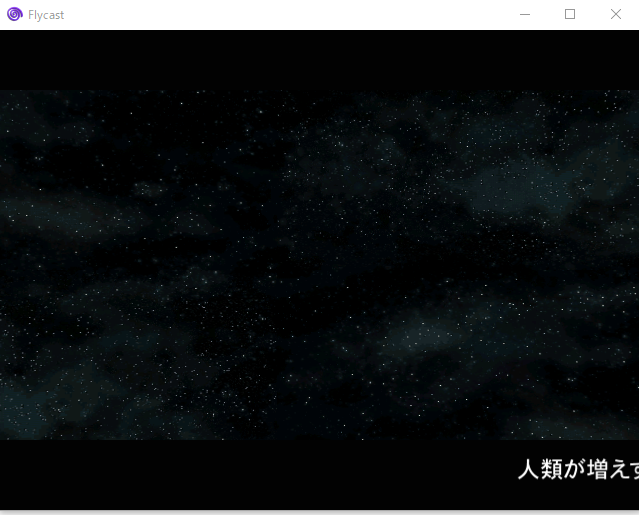

If the game starts, it is successful.

The default keyboard operations are as follows:

• Tab: Open menu
• Enter: Start
• Arrow keys: Cross
• X, C, S, D keys: ABXY button

Let's configure your controller mappings.

Launch flycast and launch the game.

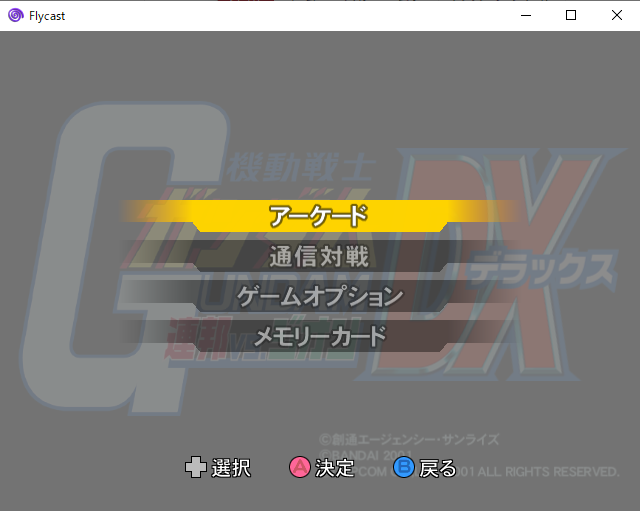

Enter “アーケード” mode and move to the battle screen.

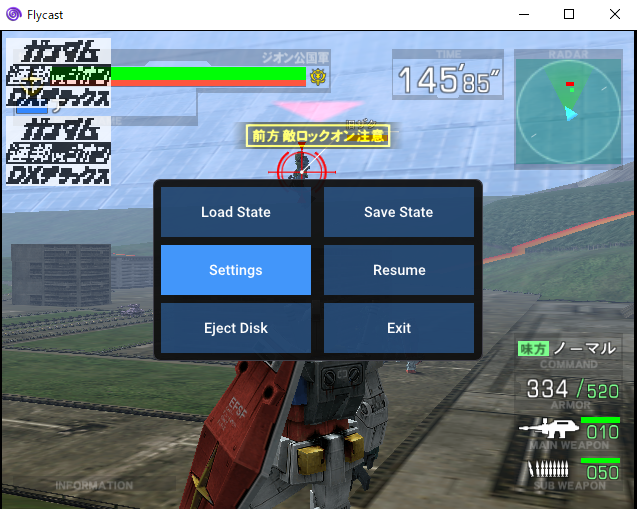

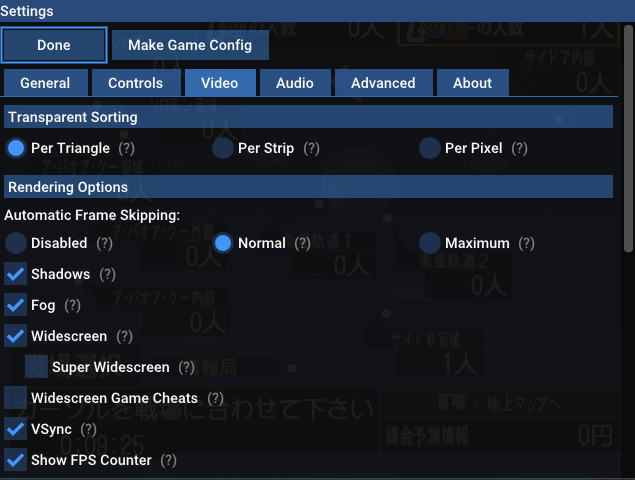

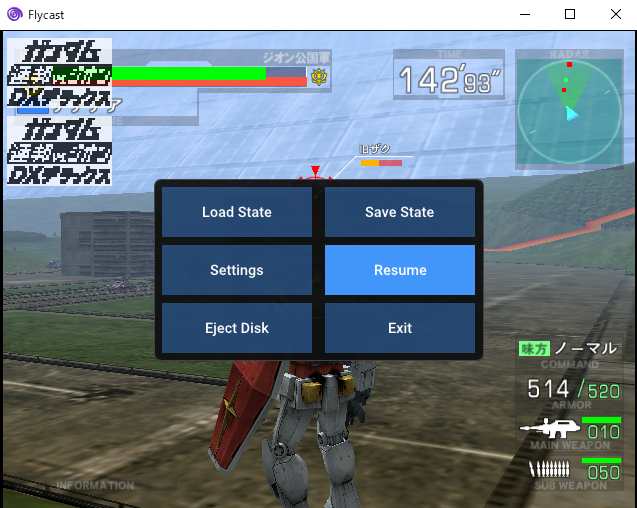

When you're on a match screen, press Tab to open the menu and click Setting.

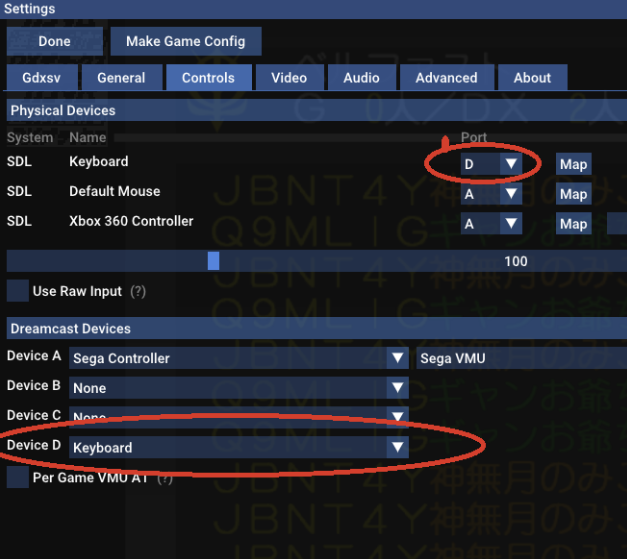

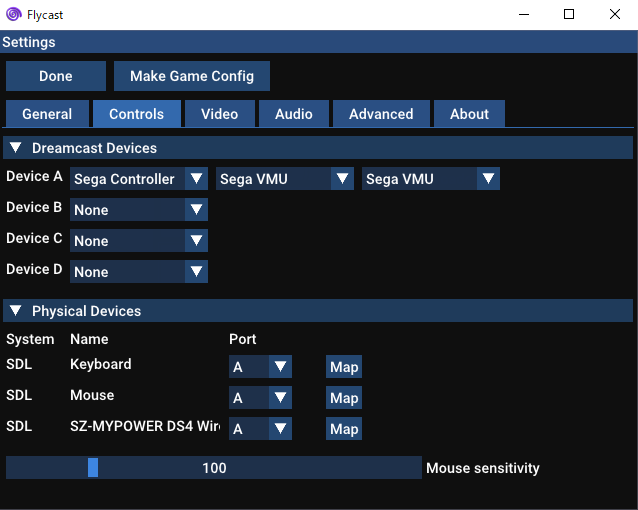

Click [Controls] to open the controller settings screen.

Click [Map] for the name of the controller you are connecting to.

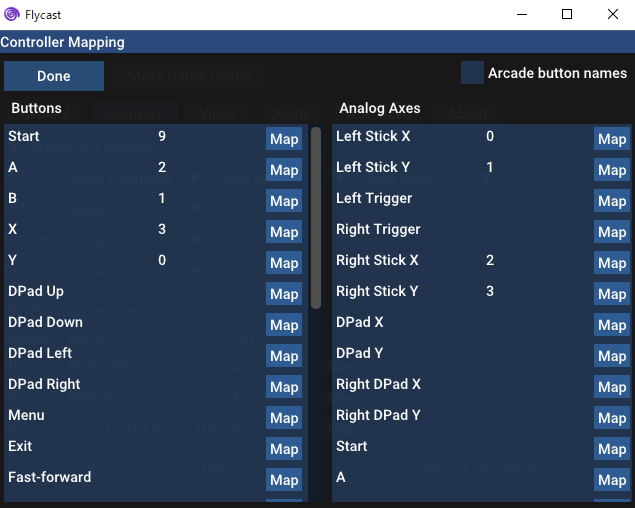

The Controller Mapping menu opens.

Assign the following buttons.

• DPadUp: ↑
• DPadDown: ↓
• DPadLeft: ←
• DPadRight: →
• A: Jump
• B: Search
• X: Shooting
• Y: Close attack
• Left Trigger: Communication (HP report)
• Right Trigger: Sub-shooting
• Left Trigger2: Ex shooting (A+X)
• Right Trigger2: Ex close attack (A+Y)
• Start: Start

• Menu: Open emulator menu

Click [Map] of each button to click The MapButton dialog will be displayed, so press the button of the controller you want to assign.

After configure button settings, Click [Done] in the upper left twice to return to the emulator menu.

click [Resume] to return to the game.

Check if the controller works properly in the game.

When you're done, click the X to exit flycast.

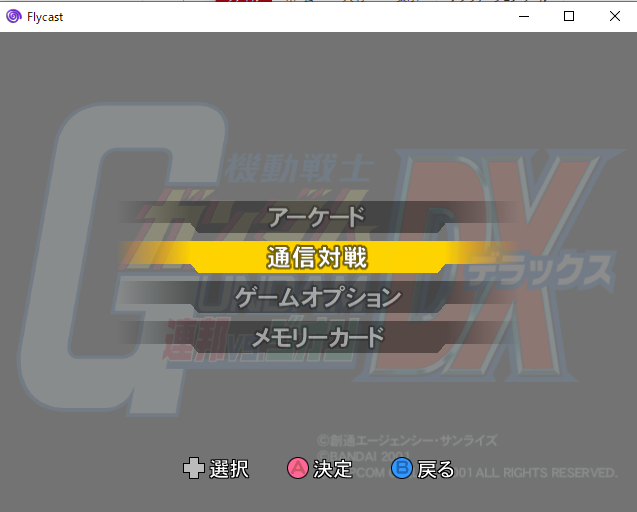

Launch the game and select a “通信対戦” (network battle).

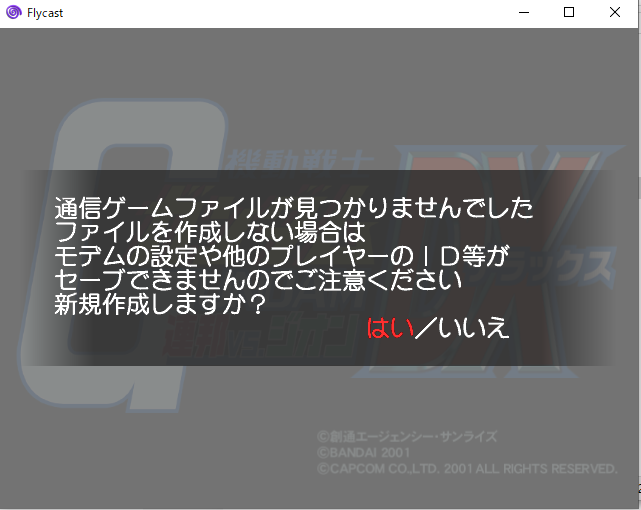

Create a save data.

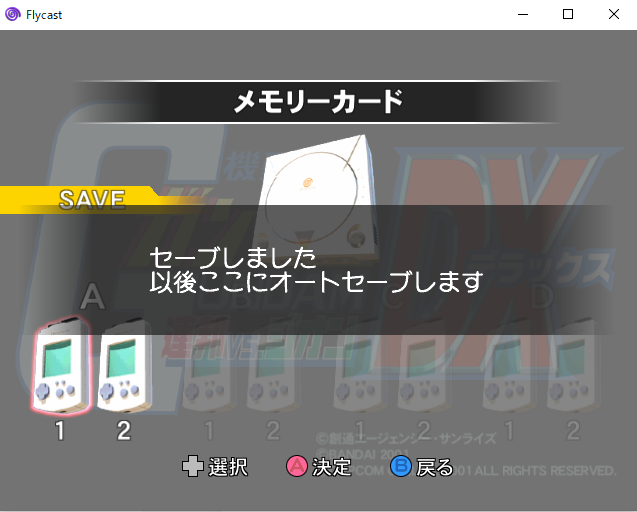

Select “はい” and save it to memory card 1.

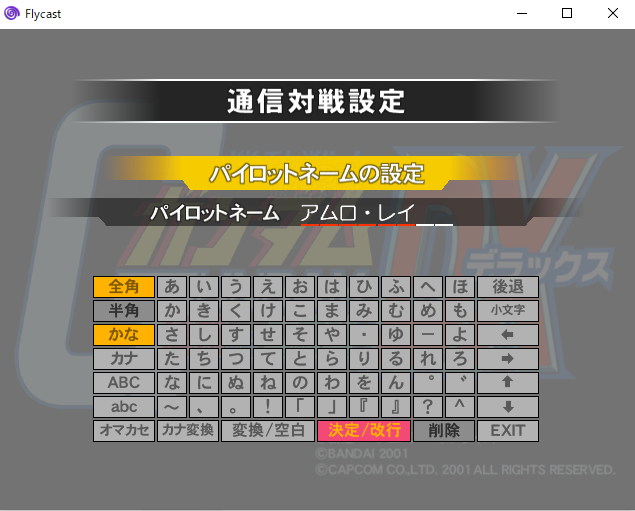

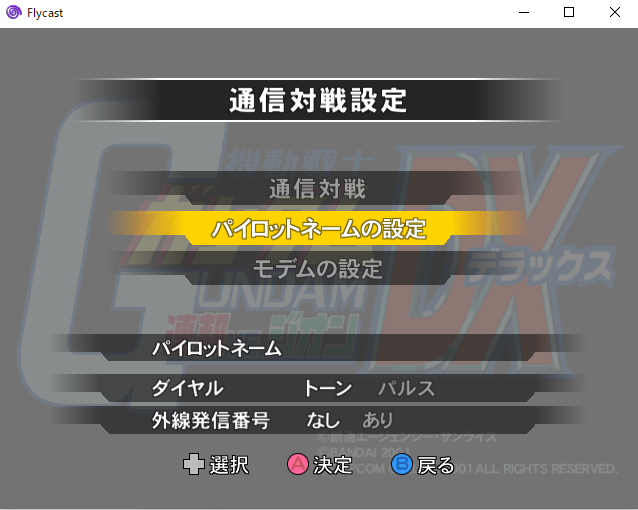

Press “パイロットネームの設定” and enter your pilot name.

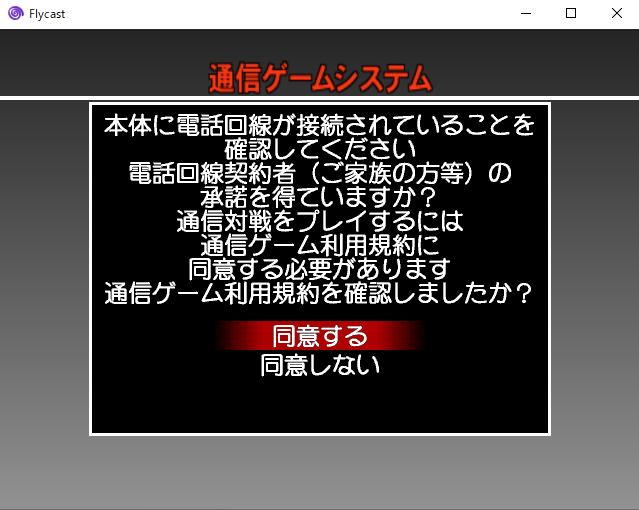

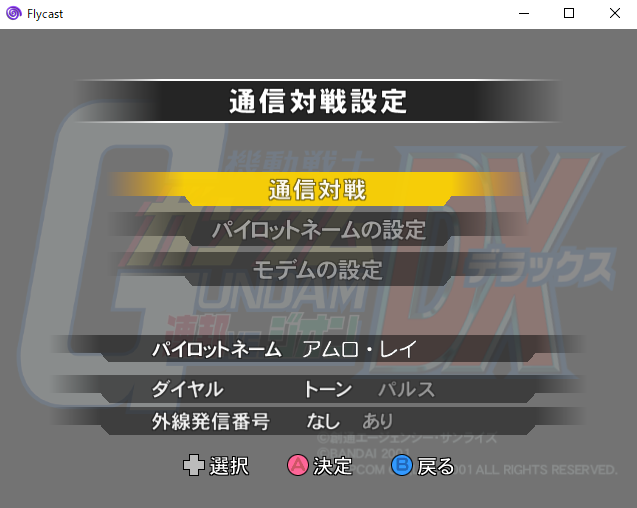

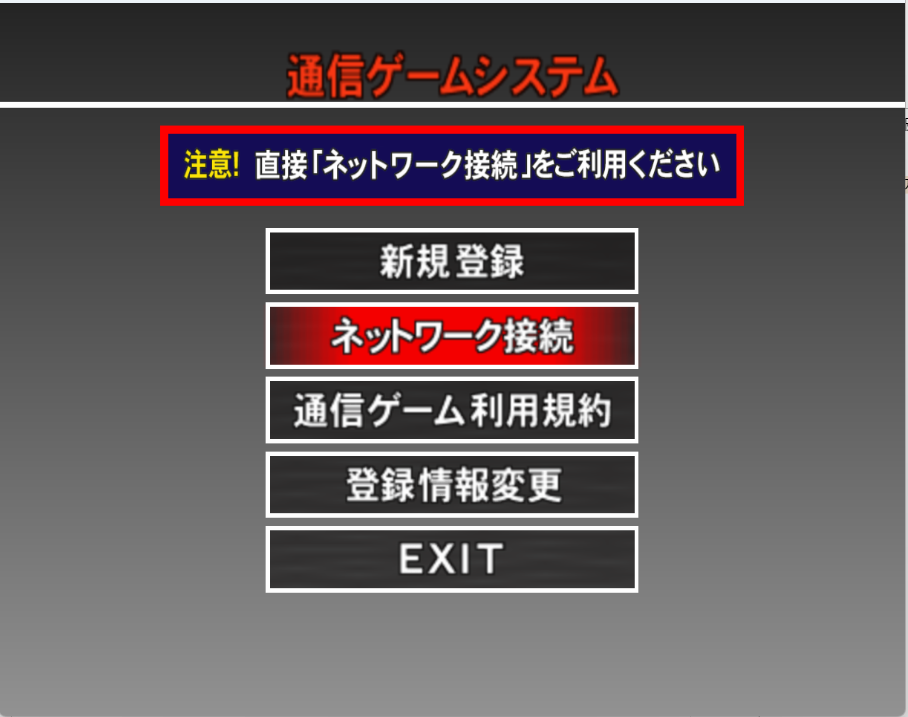

Go on [通信対戦] > [登録情報変更] > [同意する]

Other menus are not used.

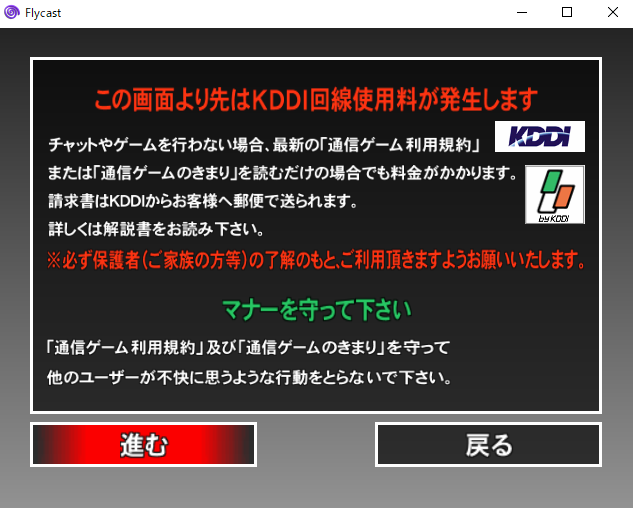

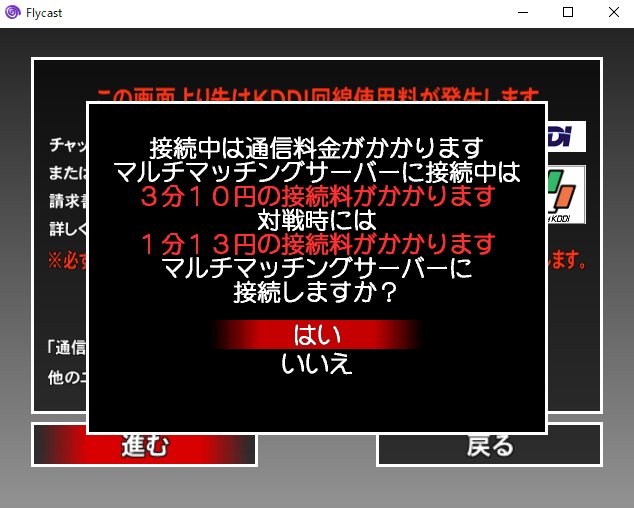

Go on

[進む] > [はい]

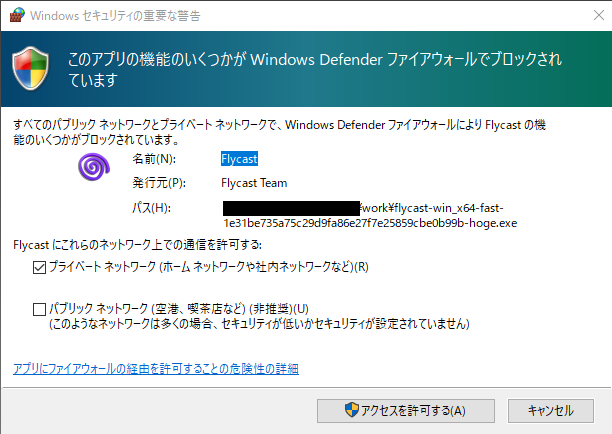

If a firewall warning is displayed, click Allow access (A).

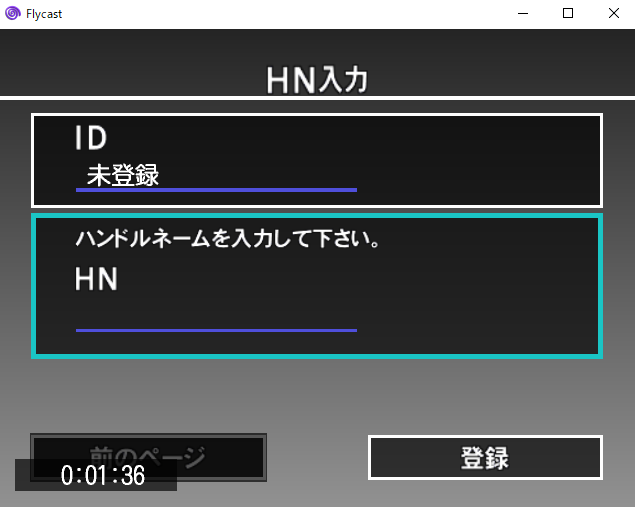

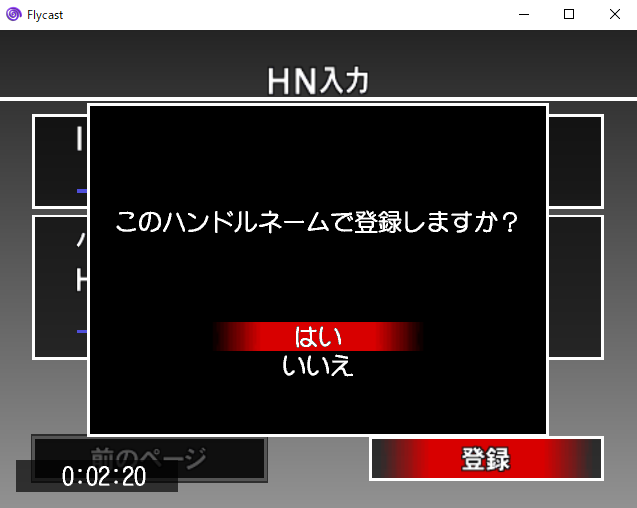

If the connection is successful, you will enter the HN input screen.

Enter your handle name and press [登録].

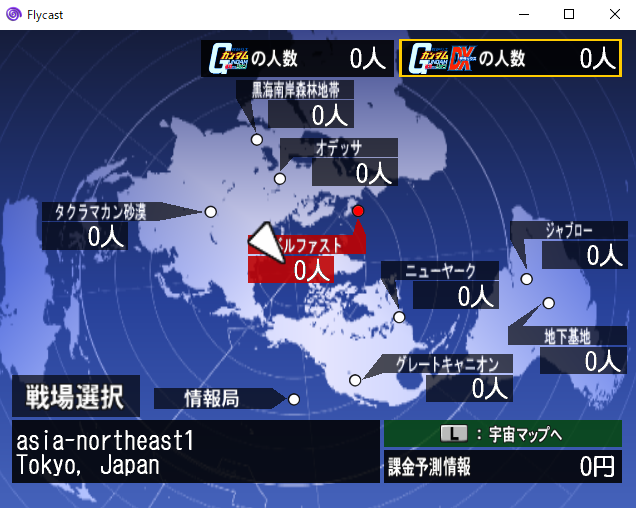

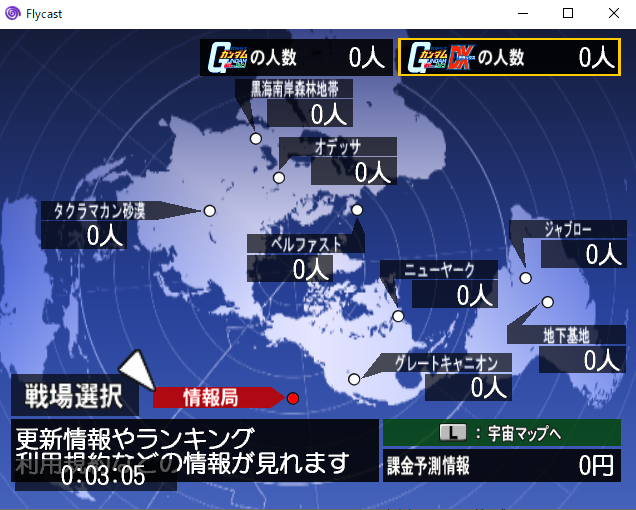

The battlefield selection screen is displayed.

Each location represents a lobby.

If a real place name is written in the lower left, the battle server of that place will be used.

You should choose a server that is close to where you live to get comfortable playing.

This completes the connection check.

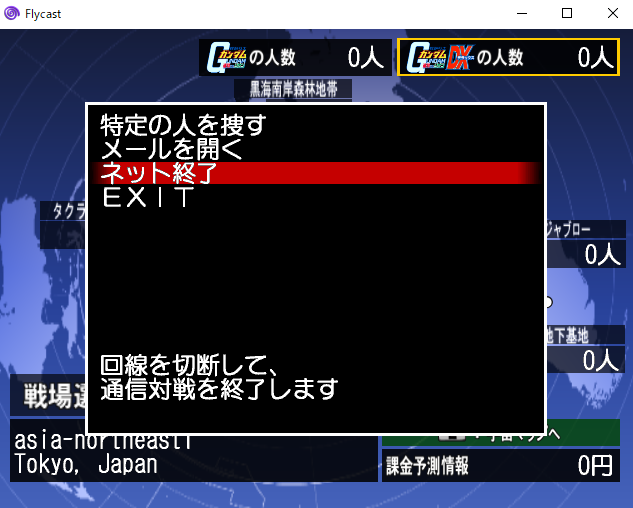

To disconnect, press the Start button (Enter) and select [ネット終了].

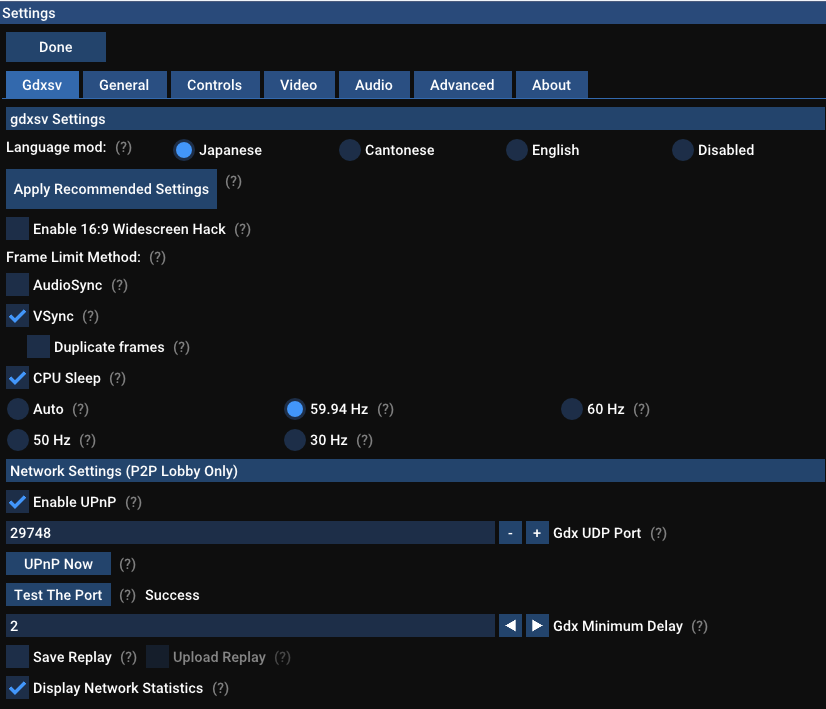

Start the emulator and press the Settings button.

Display the Gdxsv tab.

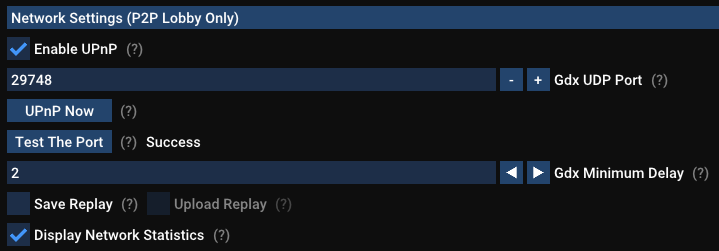

In NetworkSettings:

*In a P2P match, you need to communicate directly with your opponent. To do this, you will need to change the router settings in your environment. UPnP is the automatic way to make this setting.

Most routers have UPnP available by default, but if it is not available, log into your router's configuration screen yourself and add the port forwarding setting.

In case using UPnP

1. Check Enable UPnP

2.Set GdxUDPPort (set between 29700 ~ 29800 as appropriate)

3.Press [UPnP Now] button

• If "Success" is displayed, the router setting is complete.

4.Press [Test The Port] button

• If "Success" is displayed, you are ready to play.

If the message "Failed (Timeout)" is displayed:

●Check if the communication is not blocked by security software.

• Please change the setting of your security software so that it does not block Flycast communication.

●Check if you have a duplicate router.

• Please eliminate the duplex router (double-NAT).
• Google search: double NAT

If this does not solve the problem, please go to "In case NOT using UPnP".

In case NOT using UPnP

The configuration screen will vary depending on the router, but the following settings should be made.

• Protocol: UDP
• External IP Address: All
• External Port Number: Same value as Gdx UDP Port
• Internal IP Address: Local IP address of PC
• Internal port number: Same value as Gdx UDP Port

In Flycast, configure as follows

1. Uncheck Enable UPnP

2. Set GdxUDPPort (same value as set in the router)

3. Press [Test The Port] button

• If "Success" is displayed, you are ready to play.

Other settings

GdxMinimumDelay: Sets the minimum input delay frame.

• Smaller values decrease the input delay during a match.
• Larger values decrease the load on the PC during a match.
• Set to a value that is comfortable for you.

Save Replay: Save game inputs during a game to a replay file.

Upload Replay: Upload replays automatically at the end of the match.

Display Network Statistics: Displays ping and other information during a match.
